Figure 5 | Scientific Reports

Figure 5

From: Rapid synthesis and decoration of reduced graphene oxide with gold nanoparticles by thermostable peptides for memory device and photothermal applications

Figure 5

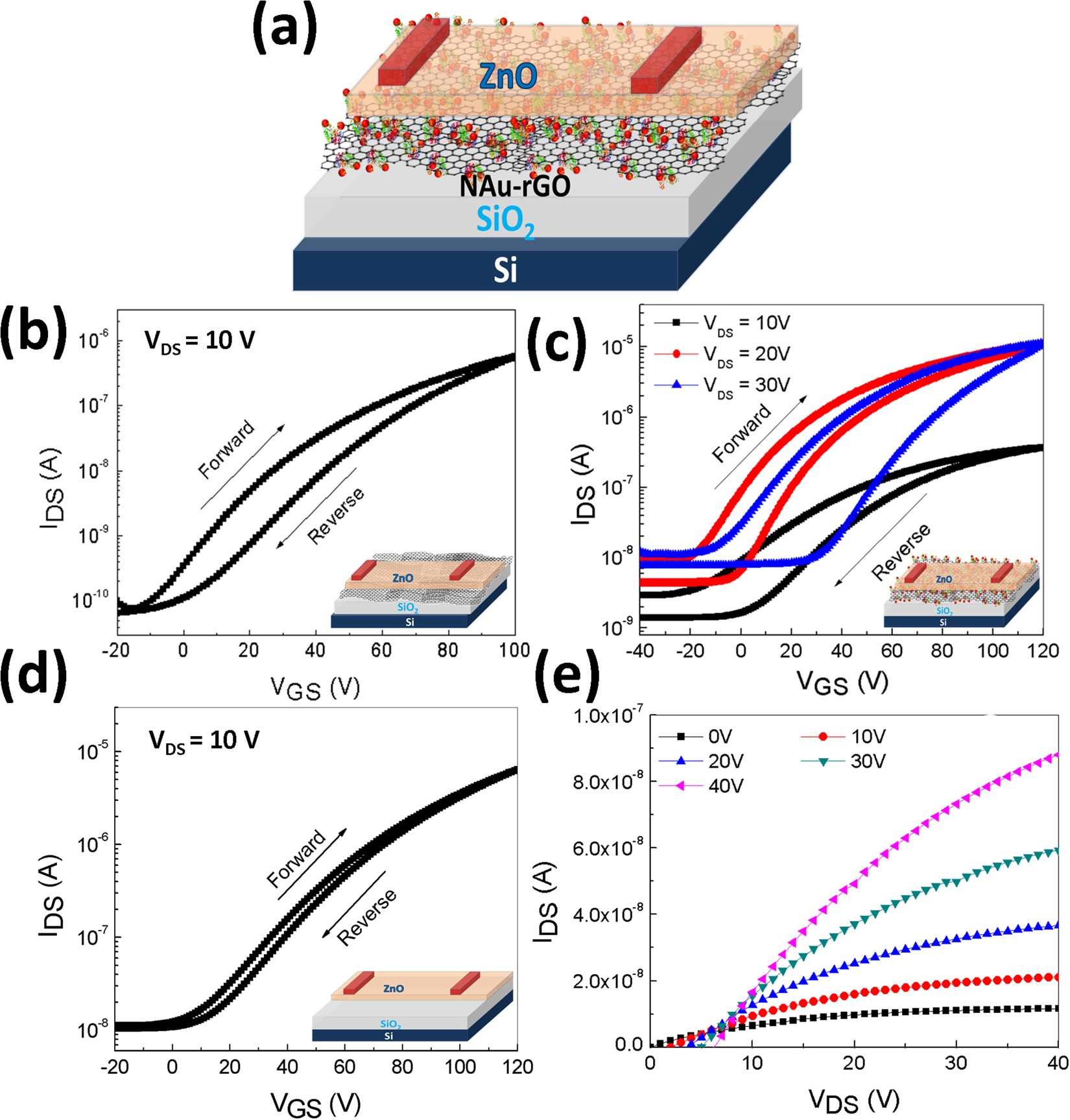

Construction and characteristics of NAu-rGO based TFT. (a) Schematic of the ZnO TFT memory device. (b) Transfer characteristics of the ZnO TFT memory device embedded with rGO at ZnO and SiO2 interface. (c) Transfer characteristics of the ZnO TFT memory device embedded with NAu-rGO nanocomposite at ZnO and SiO2 interface with varying drain voltage (VDS). (d) Transfer characteristics of ZnO TFT embedded without NAu-rGO nanocomposite. (e) Output characteristics of ZnO TFT embedded with NAu-rGO nanocomposite at ZnO and SiO2 interface.
