Figure 3
From: Identification of key regions and residues controlling Aβ folding and assembly

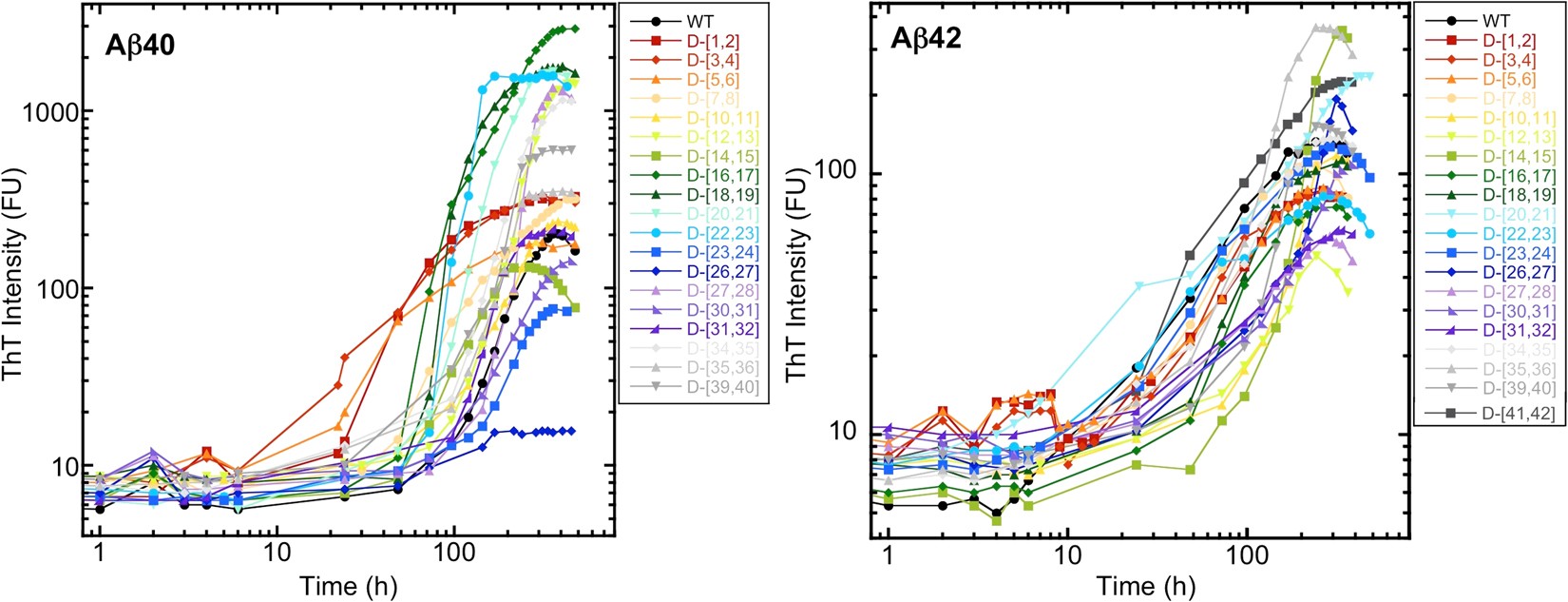

Fibril formation kinetics of di-D-amino acid substituted Aβ. Peptides (40 μM Aβ40, 20 μM Aβ42) were mixed with Thioflavin T in 10 mM sodium phosphate, pH 7.4, and incubated with shaking at 37 °C. (A) Aβ40 with di-D-amino acid substitutions. (B) Aβ42 with di-D-amino acid substitutions. The peptides examined are shown in the boxes to the right of each sub-figure. Note that log-log plots are shown. (Fig. S1 shows semi-log plots of the same data.)
