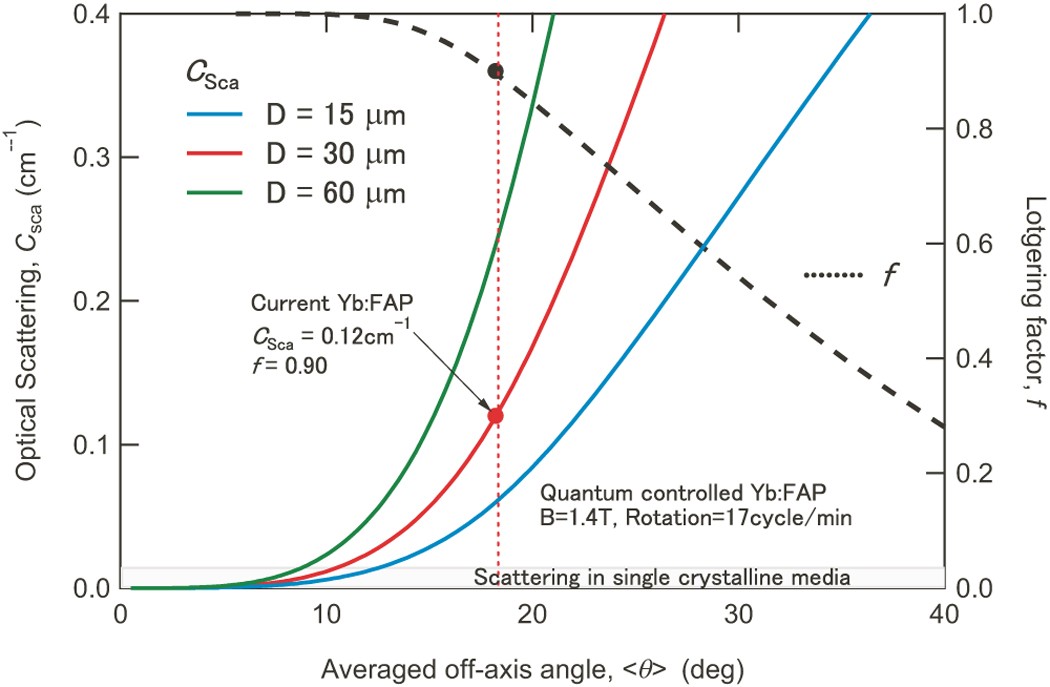

Figure 3
From: Process design of microdomains with quantum mechanics for giant pulse lasers
The relationships between <θ>, f and C sca in Yb:FAP with quantum-controlled microdomains. <θ>, f, and C sca are the theoretical mean deflection angle between the c-axis and controlling direction, the Lotgering factor, and the optical scattering coefficient. Dotted and solid lines show the relations between <θ> and f, and between <θ> and C sca, respectively.
