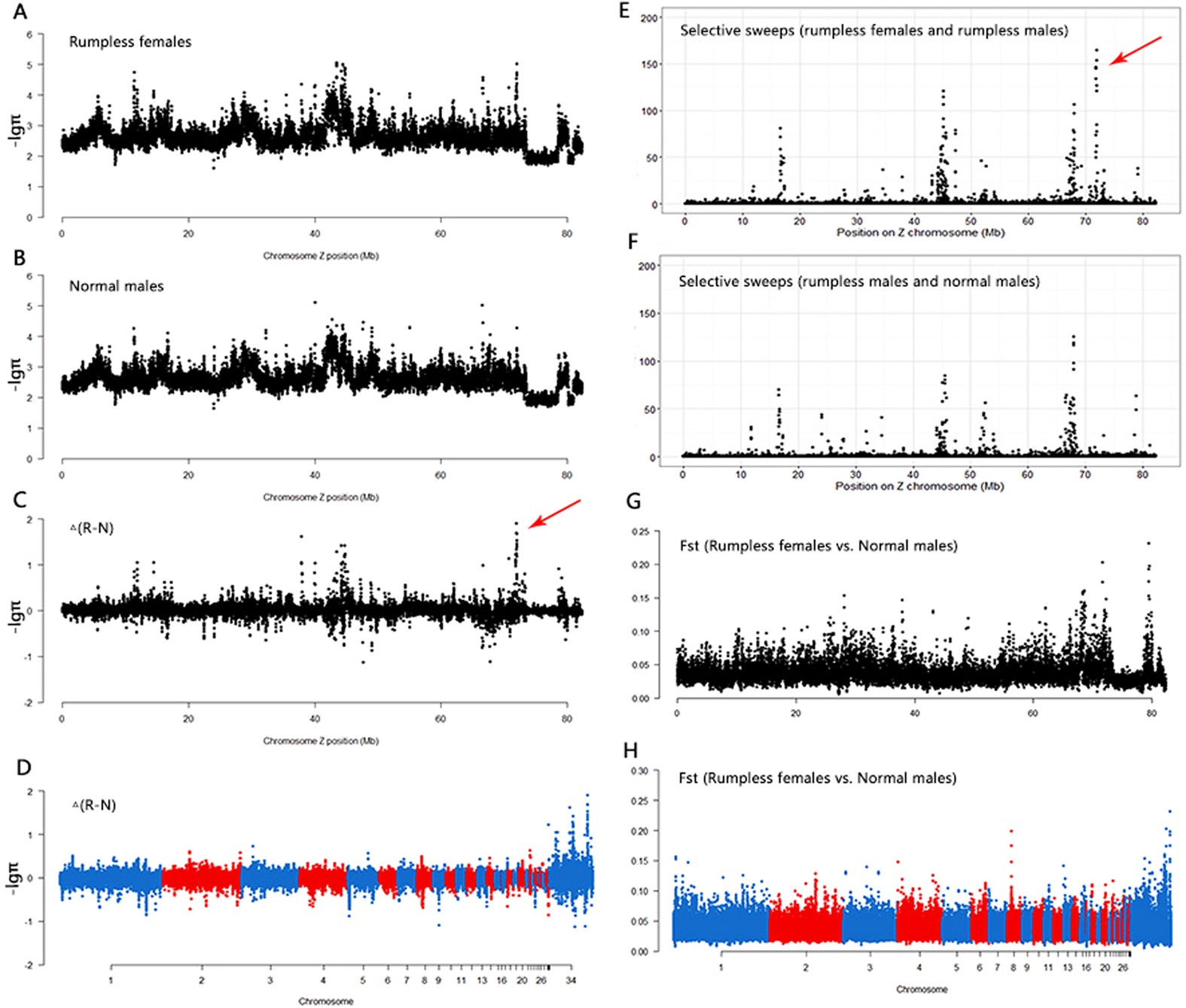

Figure 4
From: A novel sex-linked mutant affecting tail formation in Hongshan chicken
Analysis of three pools of sequencing data (rumpless females, rumpless males, and normal males). Nucleotide diversity on Z chromosome (−log10-transformed) of (A) rumpless females, and (B) normal males. Relative differences between rumpless females and normal males for −log10π on (C) Z chromosome, and (D) genome. Likelihood of selective sweeps on Z chromosome of (E) rumpless females and rumpless males, and (F) rumpless males and normal males. Fst between rumpless females and normal males on (G) Z chromosome and (H) genome.
