Figure 5
From: Erosion potential of the Yangtze Delta under sediment starvation and climate change

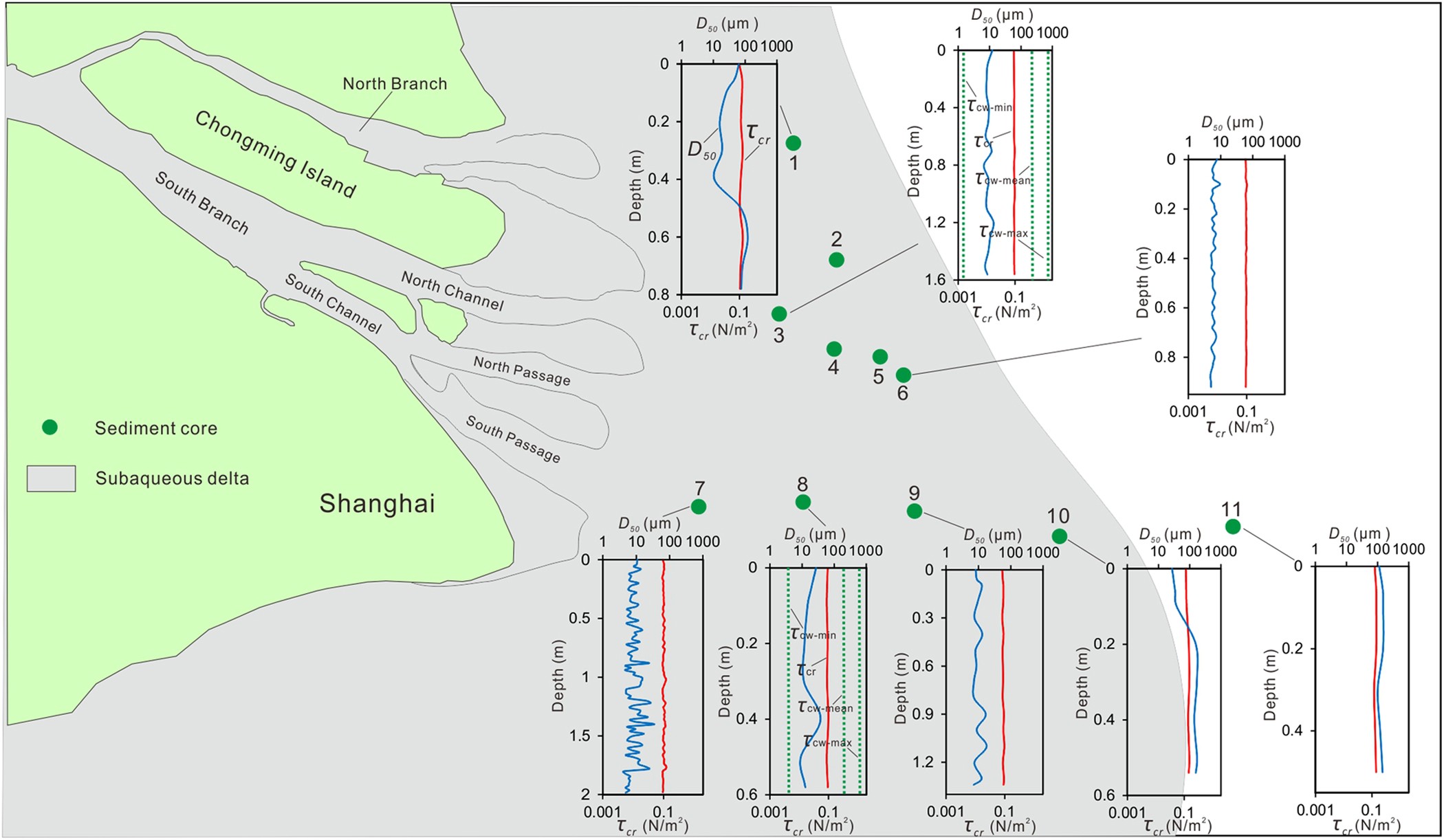

Vertical changes of the D 50 (in blue) and τ cr of the sediment cores (in red), and the measured characteristic τ cw values (in green) compared to τ cr values at the observation sites (τ cw-min, τ cw-mean and τ cw-max represent the minimal, mean and maximum τ cw values, respectively). The figures were created using ArcGIS 10.1 (www.esri.com/software/arcgis) and CorelDRAW Graphics Suite X6 (http://www.coreldraw.com/en/product/graphic-design-software).
