Figure 2
From: Self-powered Real-time Movement Monitoring Sensor Using Triboelectric Nanogenerator Technology

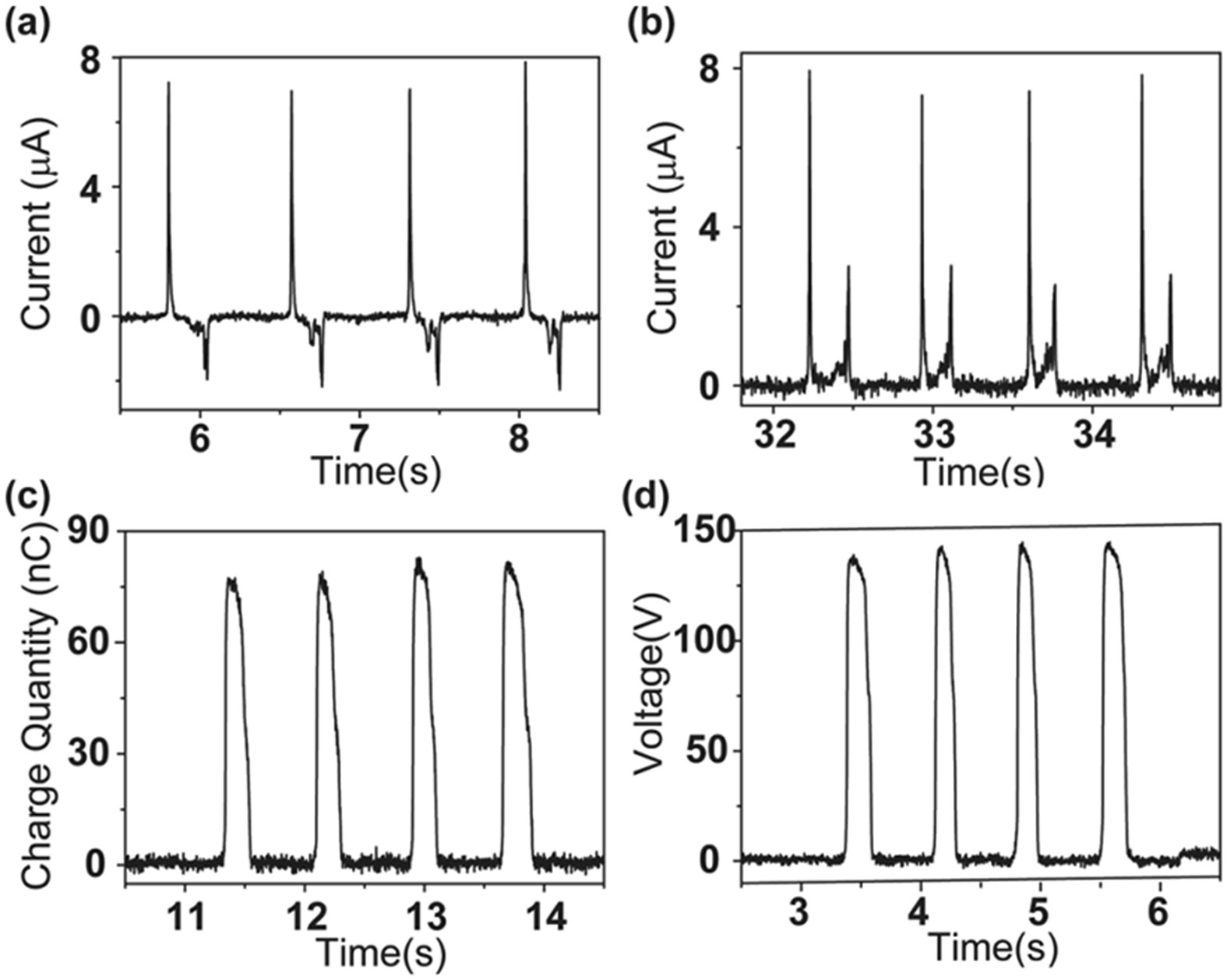

Electric characteristics of the TENG. (a–d) The measurement results of the short-circuit current, rectified short-circuit current, transferred charges and voltage of the TENG, respectively.
