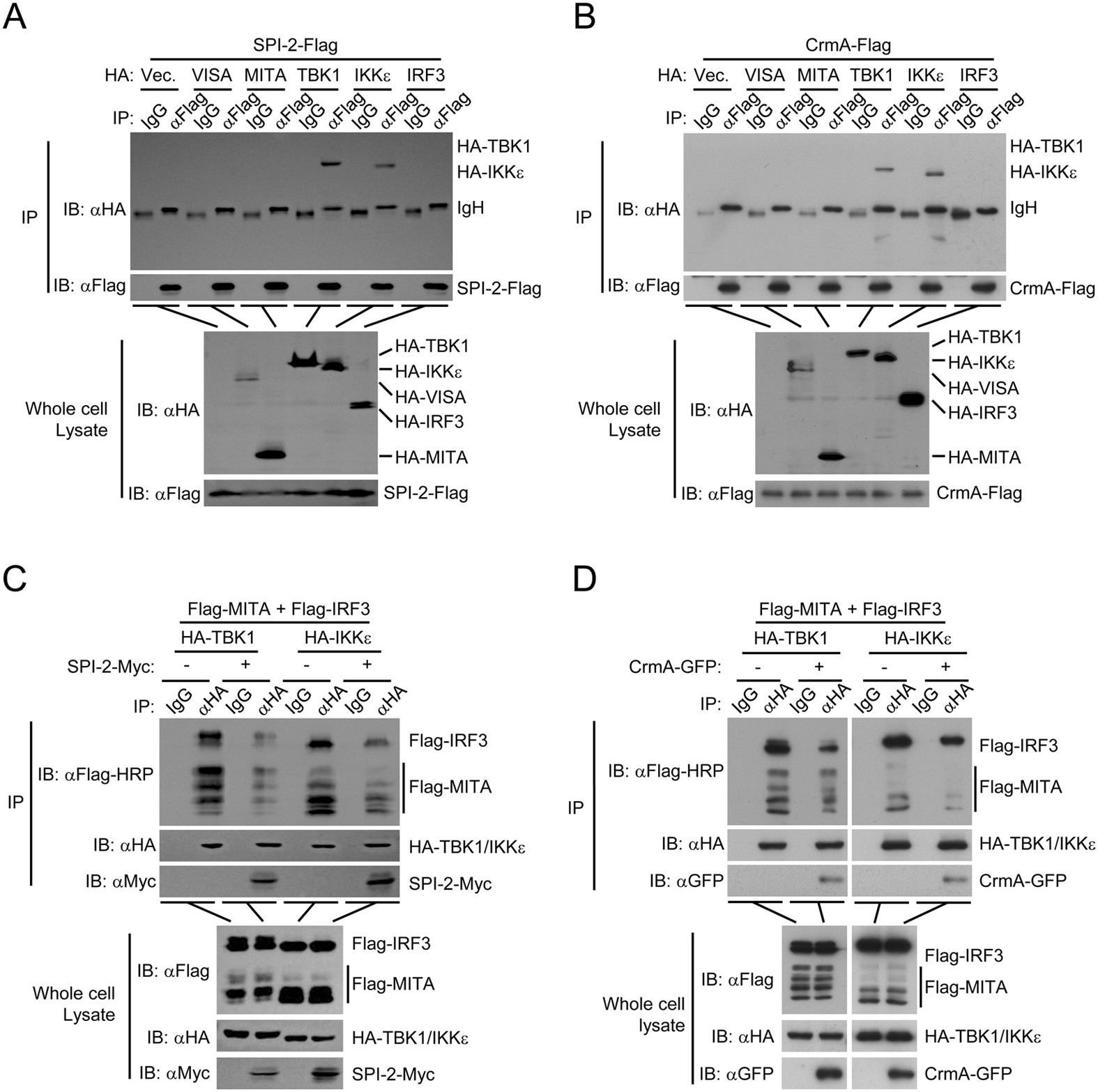

Figure 5
From: SPI-2/CrmA inhibits IFN-β induction by targeting TBK1/IKKε
SPI-2 and CrmA disrupt the MITA-TBK1/IKKε-IRF3 complex. (A, B) Association of SPI-2 (A) and CrmA (B) with TBK1 and IKKε. HEK293 cells were transfected with the indicated plasmids for 24 hours before coimmunoprecipitation and immunoblot analysis with the indicated antibodies.(C,D) SPI-2 (C) and CrmA (D) disrupt the MITA-TBK1/IKKε-IRF3 complex. HEK293 cells were transfected with the indicated plasmids for 20 hours before coimmunoprecipitation and immunoblot analysis with the indicated antibodies. All experiments were repeated at least three times with similar results. The cropped blots from different gels are displayed, for full blots refer supplementary information.
