Figure 1

From: Modulation of action potentials using PEDOT:PSS conducting polymer microwires

Figure 1

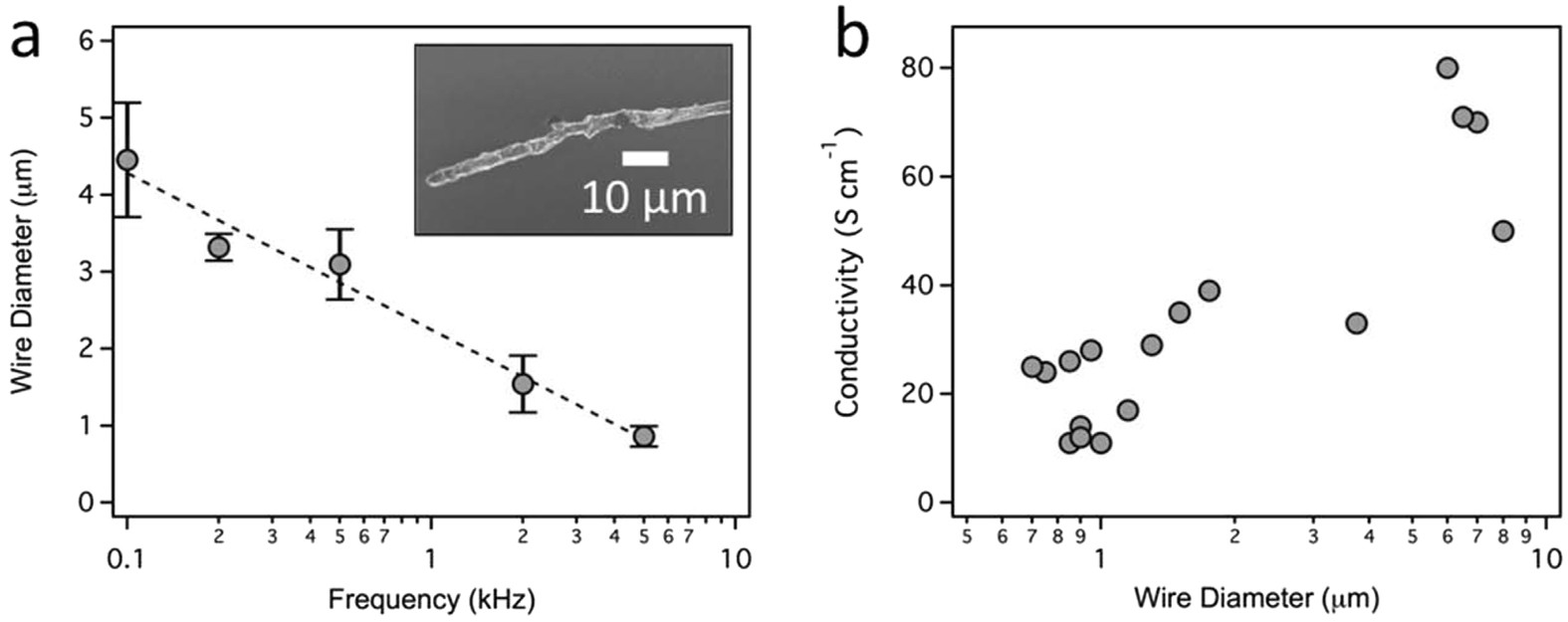

Characterization of PEDOT:PSS microwires. (a) Microwire diameter as a function of the AC frequency used for electrochemical polymerization. Data was obtained from SEM images for n ≥ 3 different microwires. The dashed line shows the best fit to the data. Error bars represent ± standard deviation of the mean. The inset shows a representative SEM image of a PEDOT:PSS microwire grown using a 500 Hz square wave. (b) Conductivity of PEDOT:PSS microwires as a function of wire diameter. (n = 18, two values overlap).
