Figure 4
From: Oceanographic drivers of the vertical distribution of a highly migratory, endothermic shark

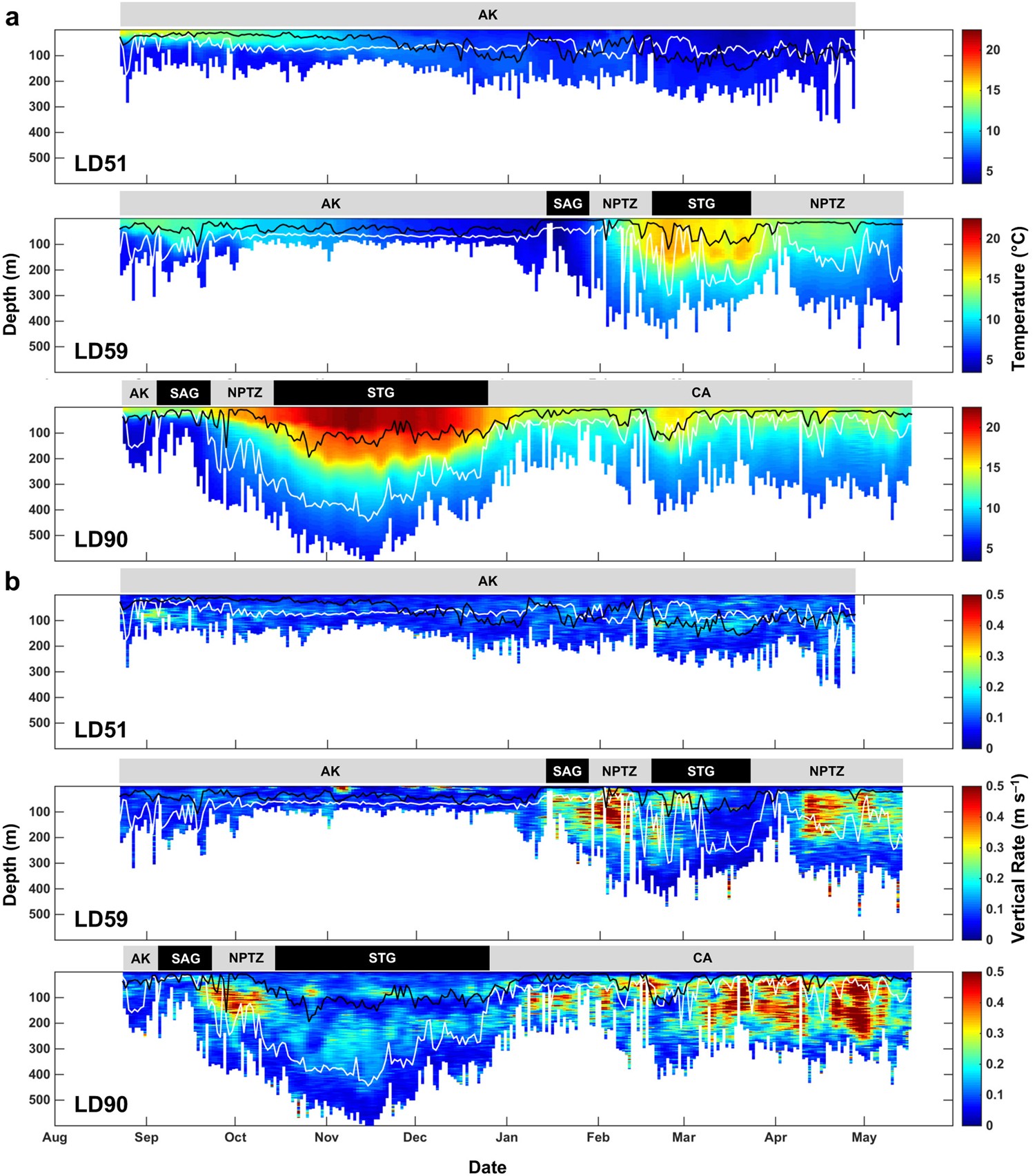

Archival time series of water column thermal structure and vertical displacement rate at depth. (a) Water column thermal structure experienced by sharks overwintering in the Alaska Coastal Downwelling (LD51), migrating to the Subtropical Gyre (LD59), and migrating to the California Current (LD90). Water column thermal structure is color-coded by temperature, and bottom limit denotes daily maximum depth. Note that sharks rarely dove below 600 m, but maximum depth was truncated for clearer illustration. (b) Vertical rate of displacement at depth experienced by sharks; color-coded by vertical rate. Solid lines denote mean depth during night (black) and day (white). Ticks on x-axis denote the start of the month.
