Figure 8
From: Oceanographic drivers of the vertical distribution of a highly migratory, endothermic shark

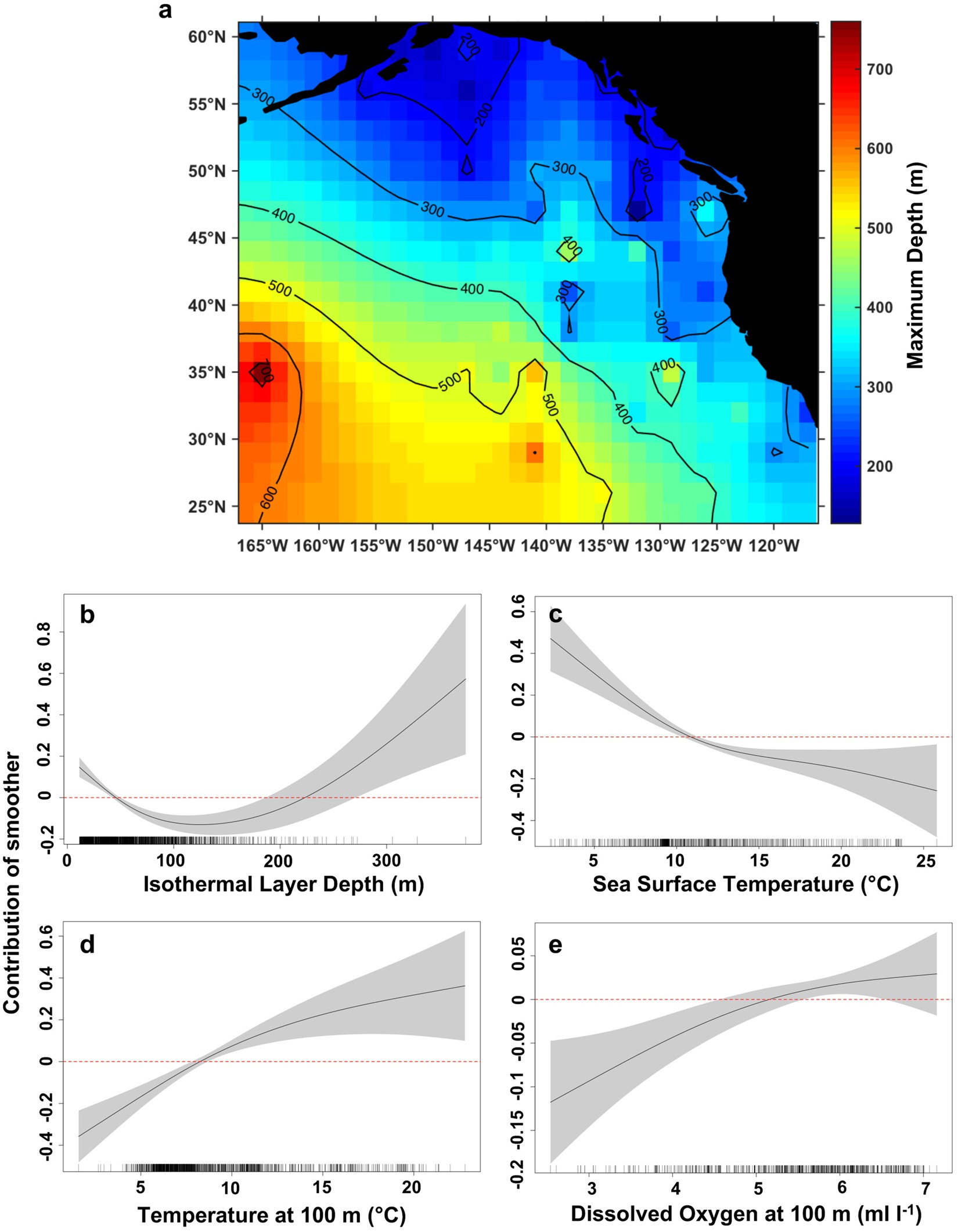

Prediction map and response curves from the final GAMM on daily maximum depth by salmon sharks. (a) Model predictions of daily maximum depth from the final GAMM are averaged in a 1.5° × 1.5° grid and plotted in false colour with numbered contours representative of predicted maximum depth. Cells without data are interpolated using a spring metaphor. Map was created using MATLAB R2015a (The MathWorks Inc., Natick, MA, USA, https://www.mathworks.com/products/matlab.html). (b–e) Estimated response curves (black solid line) of component smooth functions on daily maximum depth from the final GAMM. Shaded areas represent 95% confidence limits of uncertainty in the centred smooth. Vertical axes are partial responses (estimated, centred smooth functions) on the scale of the linear predictor. Ticks on x-axis denote values for which there are data. Positive values on y-axis (above red dashed line) indicate increased maximum depth.
