Figure 6

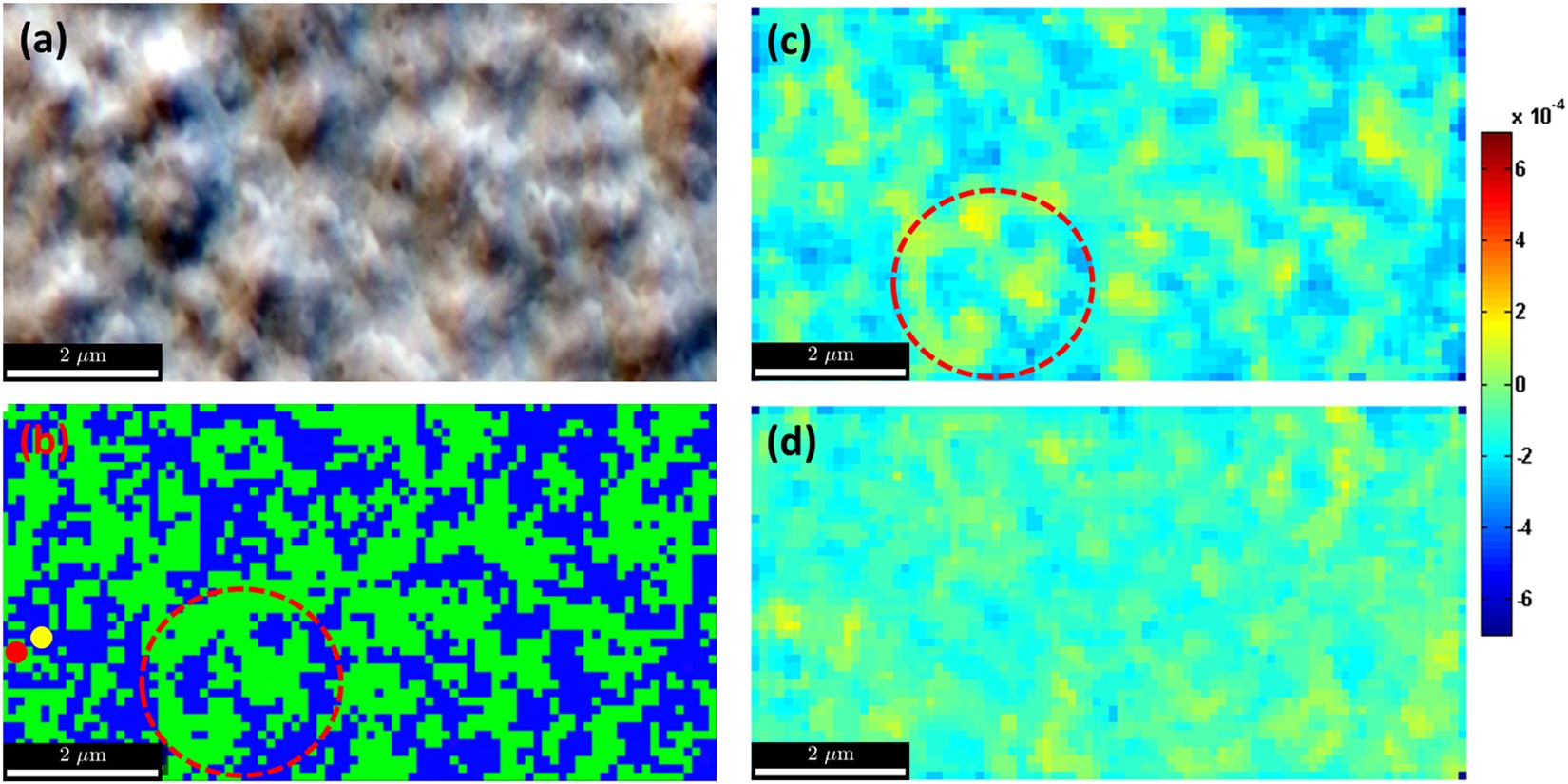

Comparison of IPF maps with cross correlation based MAE maps. (a) Forescatter image, (b) IPF map, (c) MAE (in radians) map plotted with green area in the IPF as a reference pattern, see red dot and (d)) MAE map with blue area as the reference pattern, see yellow dot.
