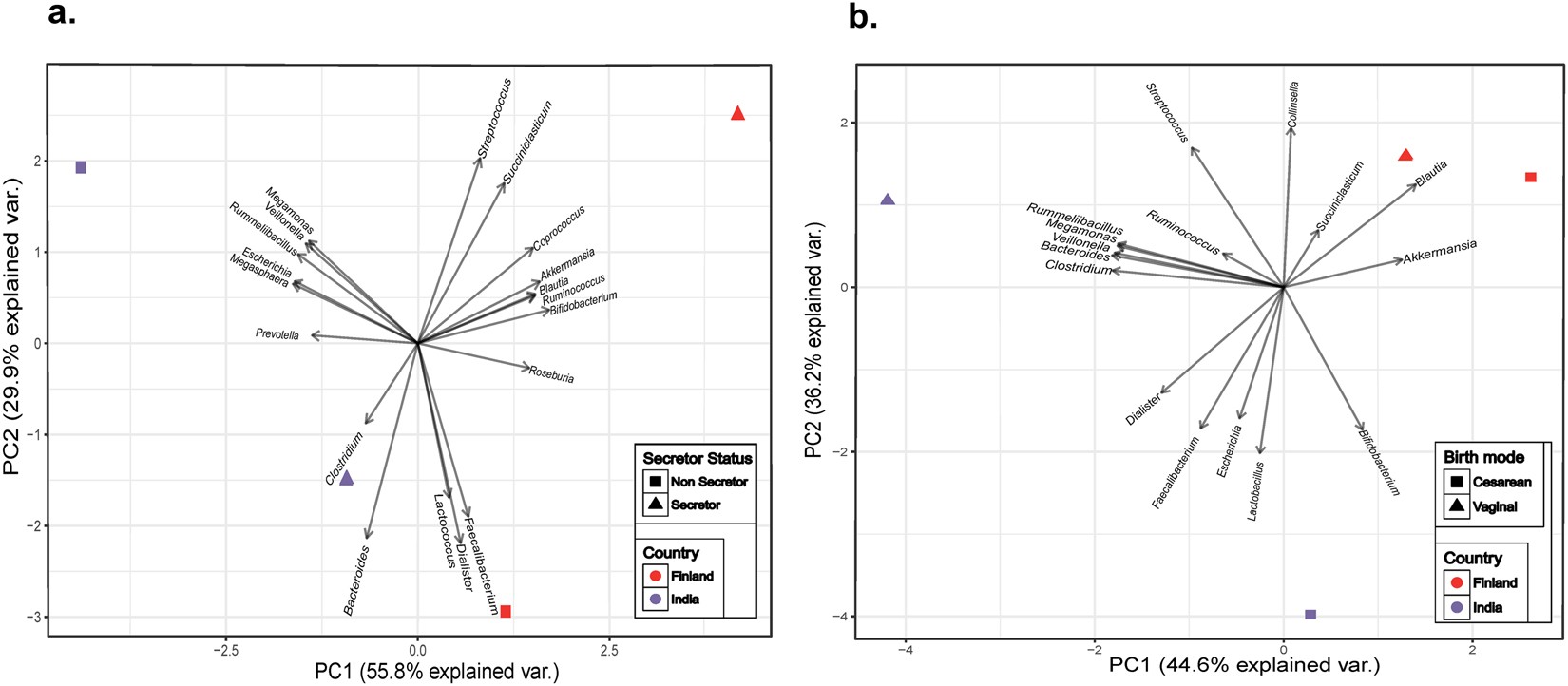

Figure 5
From: A cross-sectional comparative study of gut bacterial community of Indian and Finnish children
Principal Component Analysis. PCA was performed using the bacterial genera data; relative abundances were observed to be differing with FUT2 secretor state and birth mode in both the populations (Supplementary Figs S4 and S5). Results were plotted according to the PC1 and PC2 scores with the percent variation explained by respective axis. Specific colors were used to indicate the region and different shapes to indicate either the secretor state (a) or birth mode (b). Arrows indicate bacterial genera with their names.
