From: Evolution analysis of heterogeneous non-small cell lung carcinoma by ultra-deep sequencing of the mitochondrial genome

Figure 4

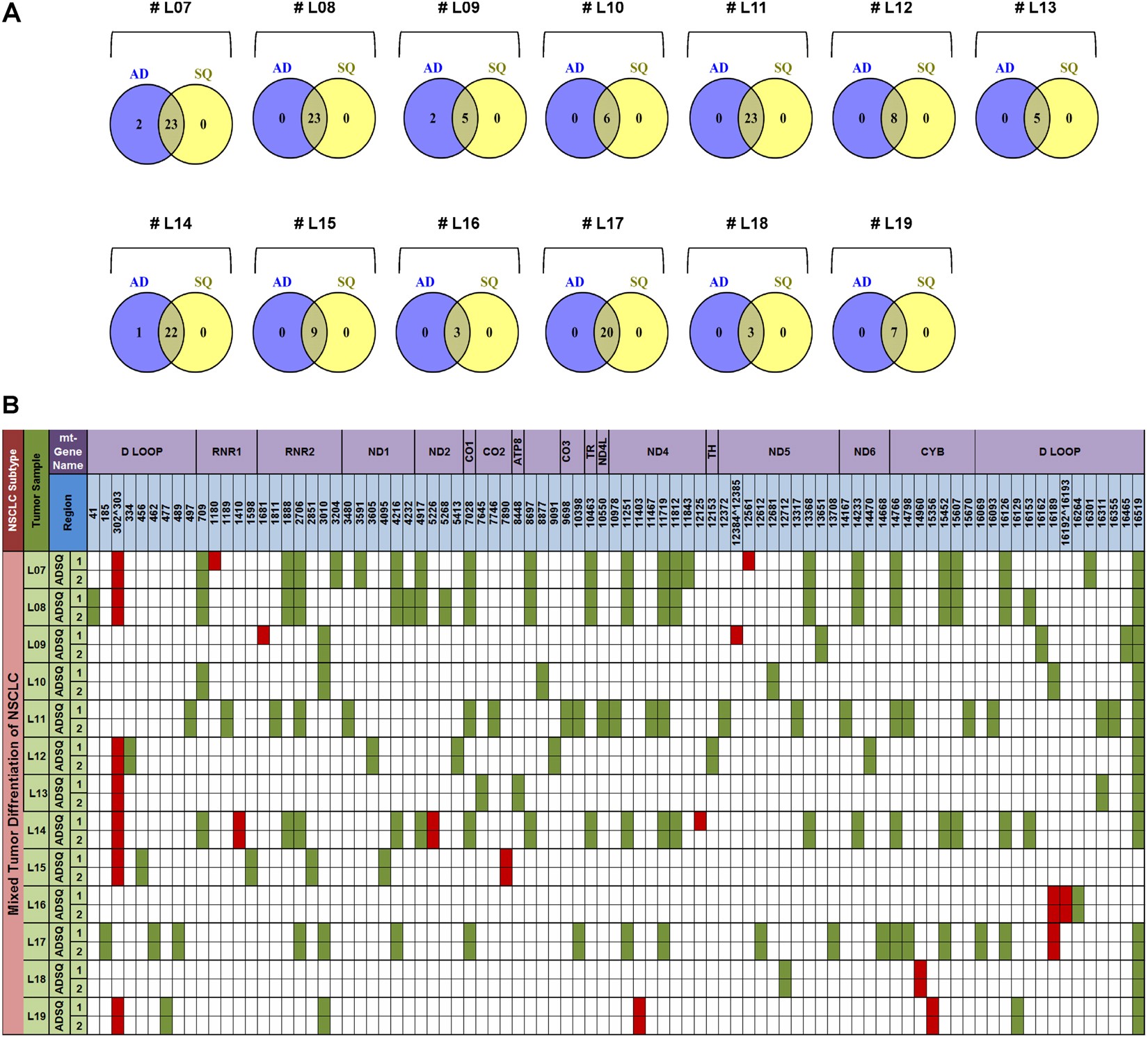

Global annotated mt-variants in mixed ADSQ samples (group II). Common mt-variants (intersection area), adaptive mt-polymorphisms and somatic mutants occurring in NSCLC tumour lesions of cases #07–#19 are illustrated in Venn diagrams (A). Variants are shown according to their mt-genomic location and gene regions (B). Adaptive mt-polymorphisms common in all lesions of individual sample are labelled in green, whereas somatic mt-mutations with pathogenic impact on some lesions are shown in red (c.f. Supplemental Data and Table S4).
