Figure 6
From: The neural basis of spatial vision losses in the dysfunctional visual system

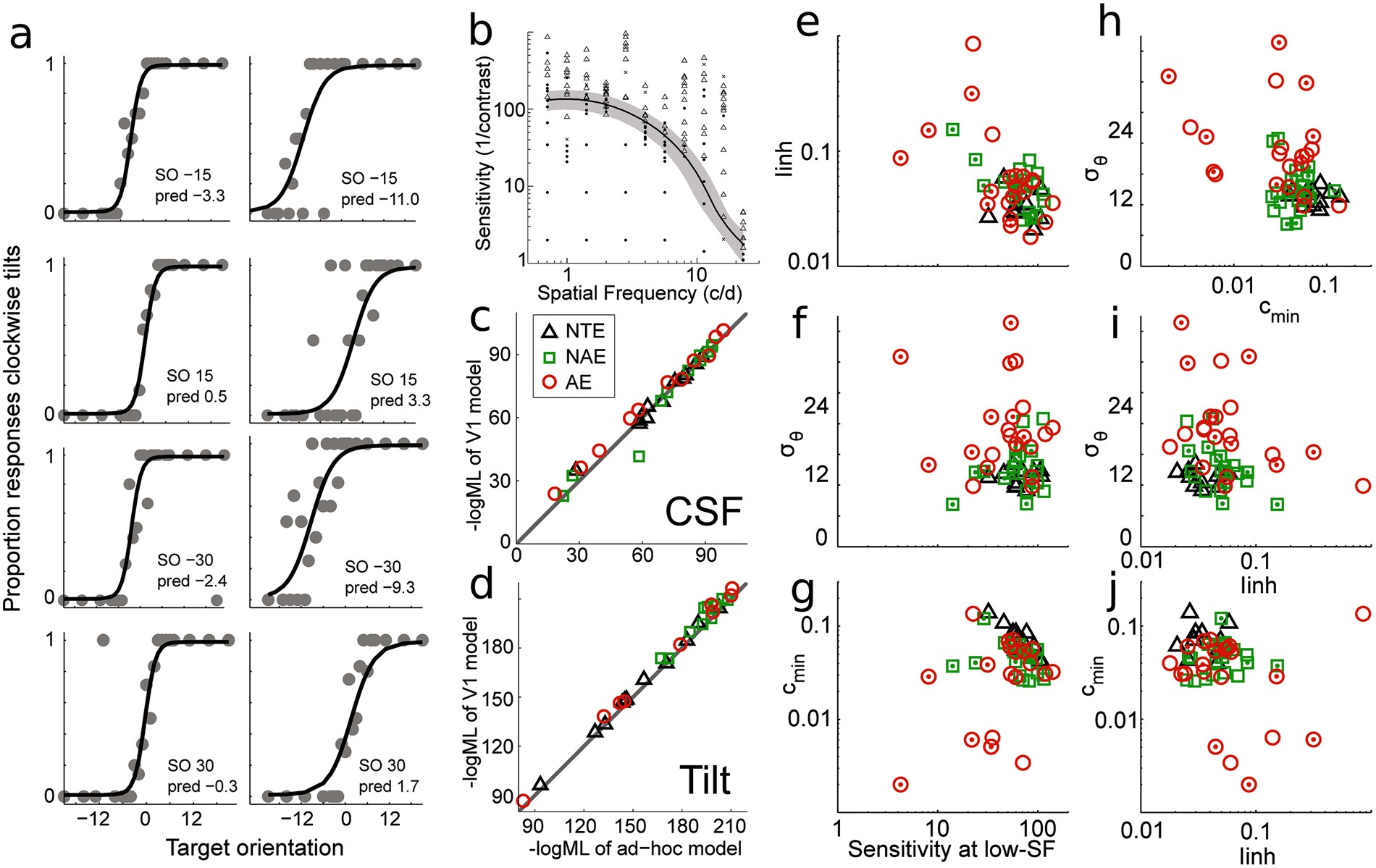

V1 Model Fit Results(a) Psychometric functions data (• = response means at the given target orientation) and fits (black solid lines) of orientation discrimination data. Each panel correspond to one surround orientation (SO) and also displays the predicted perceived vertical. (b) CSF data (•, × and △; see Fig. 3 for details) and fit (solid line). Grey area depicts the 16% to 84% psychometric function spread around the midpoint (black curve). (c,d) Comparison of Maximum Likelihood (−log(ML)) values of ad-hoc vs. V1 model fits for CSF (c) and Tilt (d) data separately. (e–g) Model fit results for the three main parameters of interest (e) I
inh
, (f) σ
θ
, and (g) c
min
, for each type of eye, as a function of model predicted sensitivity at low-SF. (h–j) Correlations between the three parameters: I
inh
, σ
θ
, and c
min
.
represents AE;
represents NAE; △ represents NTE. Each symbol with a dot in the center is from the 10 additional subjects.
