Figure 3
From: Virome analysis for identification of novel mammalian viruses in bats from Southeast China

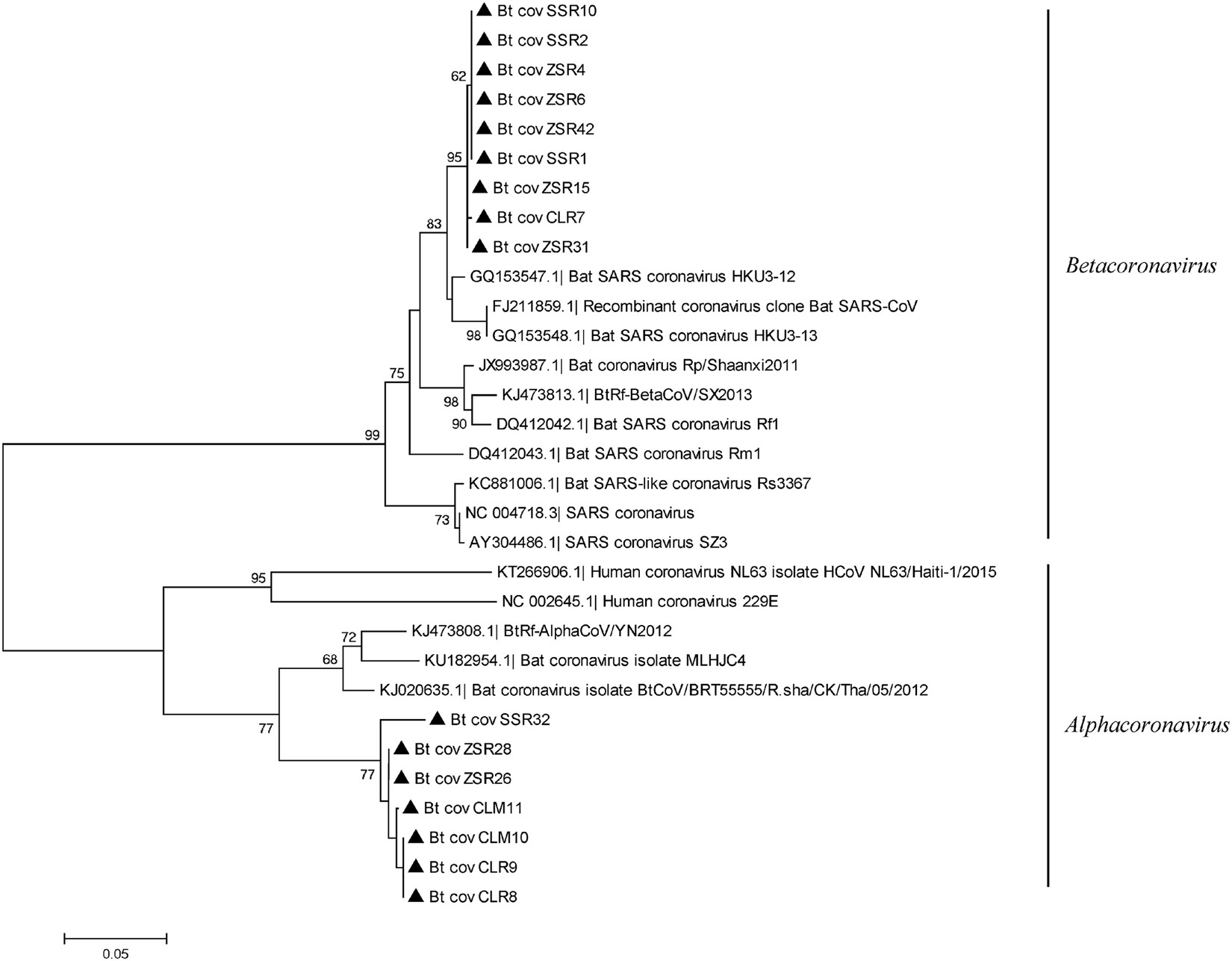

Phylogenetic analysis of 440 bp long region of the RNA-dependent RNA polymerase gene of bat coronavirus with other representatives, including alphacoronavirus and betacoronavirus. The tree was generated by using the neighbor-joining method with the Kimura 2-parameter model. A bootstrap test was replicated 1000 times. Numbers above the branches indicate NJ bootstrap values. Bold triangles indicate bcavirus detected in this study.
