Figure 5
From: Virome analysis for identification of novel mammalian viruses in bats from Southeast China

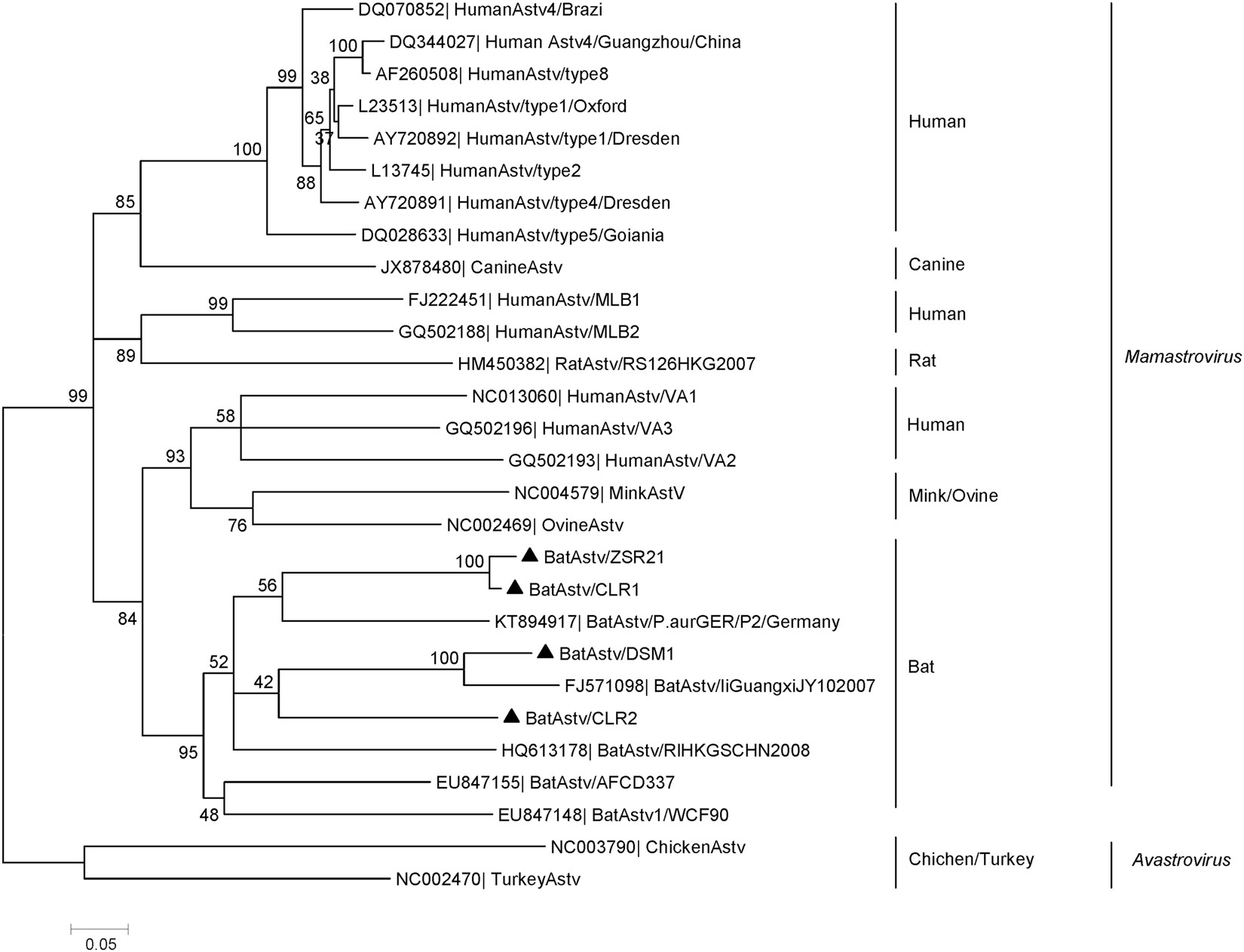

Phylogenetic analyses of novel astroviruses (BatAstv) identified from bats. The phylogenetic tree was constructed based on a 403 bp long region of the RNA-dependent RNA polymerase gene. The tree was generated by using the neighbor-joining method with the Kimura 2-parameter model. A bootstrap test was replicated 1000 times. Numbers above the branches indicate NJ bootstrap values. Bold triangles indicate adenoviruses detected in this study.
