Figure 6
From: Virome analysis for identification of novel mammalian viruses in bats from Southeast China

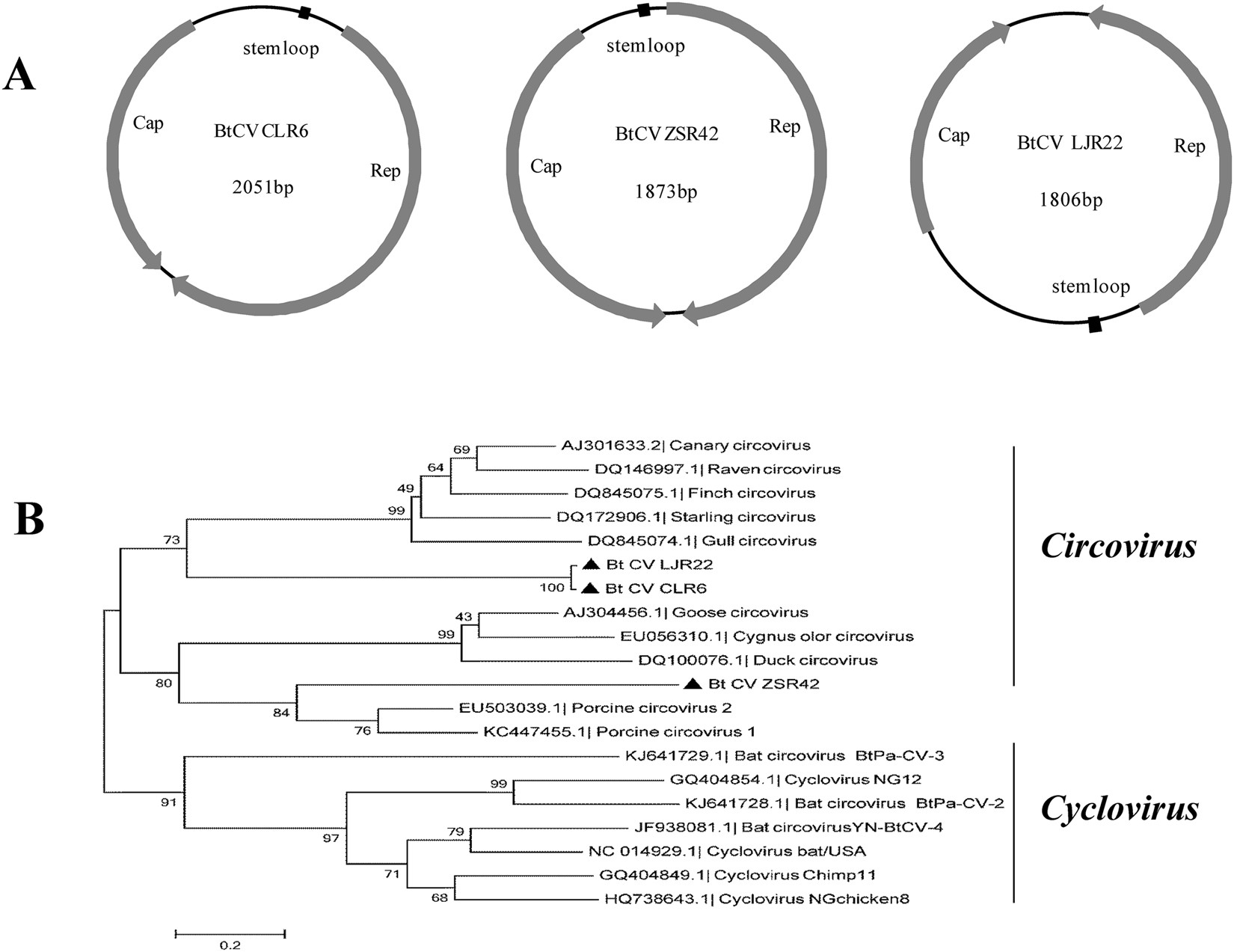

(A) Genome structures of BtCV-CLR6, BtCV-ZSR42, and BtCV-LJ22 (B). Phylogenetic analysis of complete sequence of circovirus and other representatives of circoviruses. The phylogenetic tree was constructed based on the complete sequence. The tree was generated by using the neighbor-joining method with the Kimura 2-parameter model. A bootstrap test was replicated 1000 times. Numbers above the branches indicate NJ bootstrap values. Bold triangles indicate circovirus detected in this study.
