Figure 7

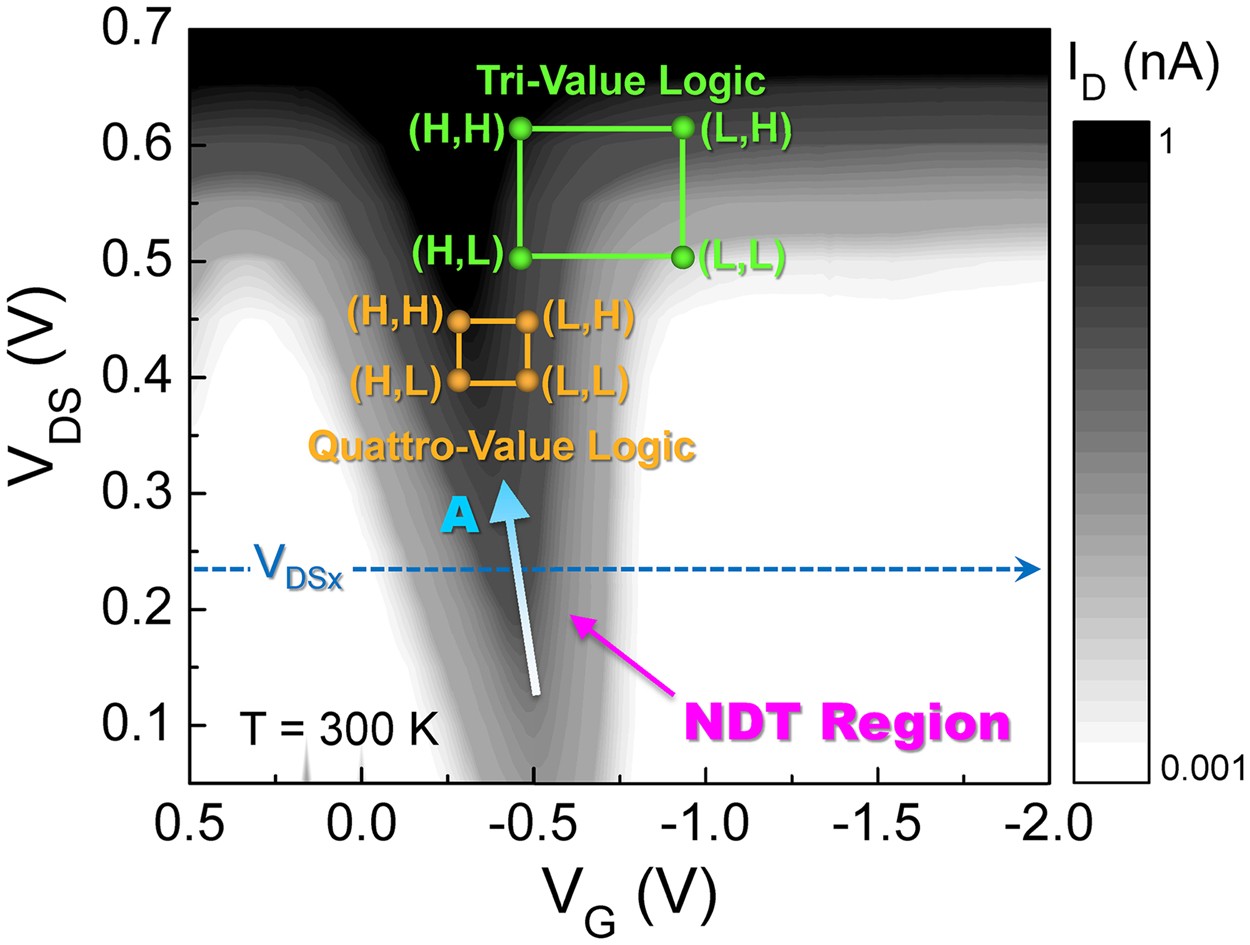

Contour plot of ID as functions of VG and VDS for the gated p+-i-n+ Si UTB transistor. The green and orange dots pointed in the contour plot depict the bias points for performing the tri- and quattro-value logic functions using a unit device of our Λ-NDT transistor, respectively.
