Figure 5
From: Recyclable Polydimethylsiloxane Network Crosslinked by Dynamic Transesterification Reaction

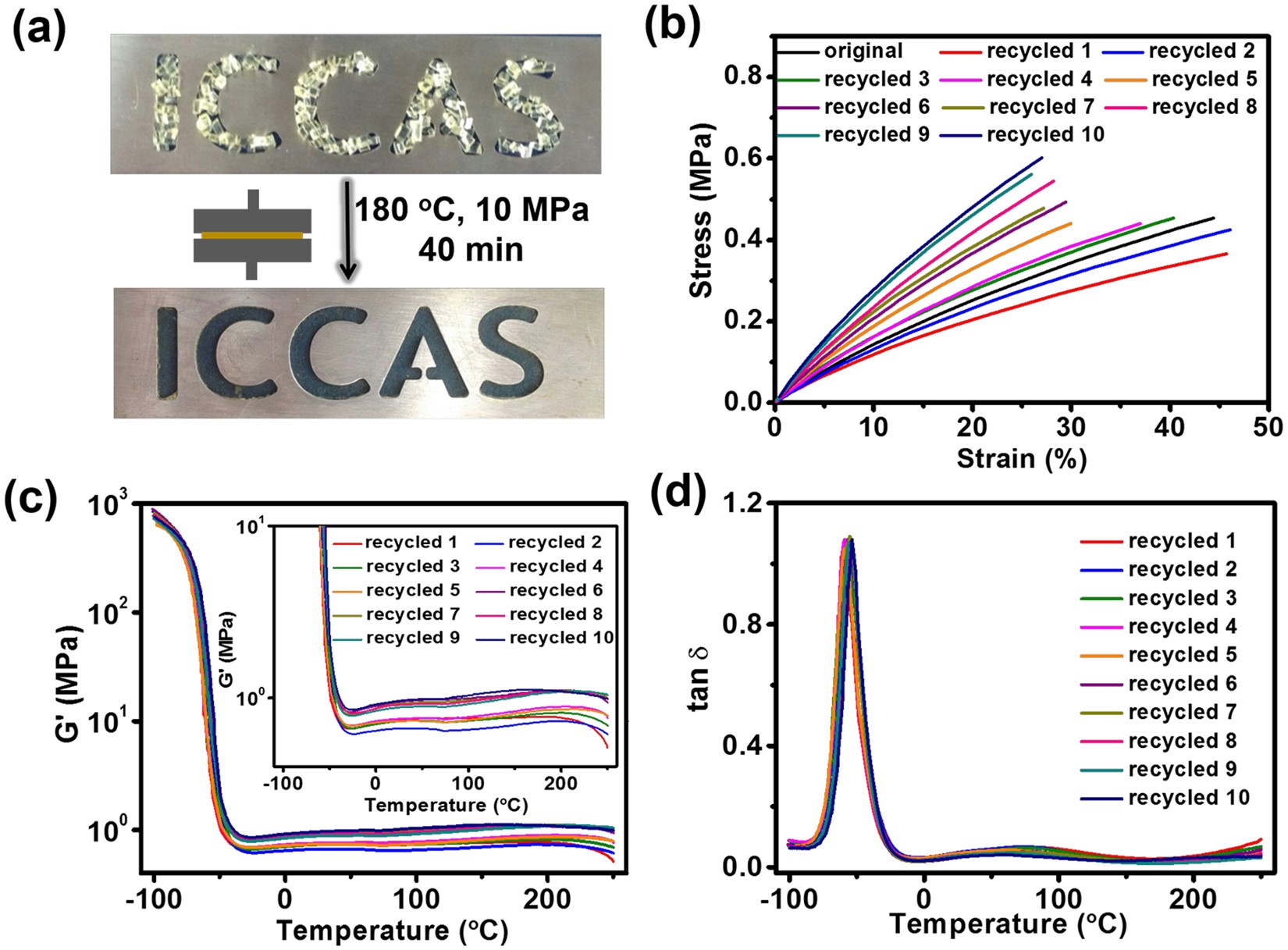

(a) Photo showing the thermal recycling of the crosslinked PDMS by hot pressing. (b) The stress-strain curves, temperature dependence of (c) storage modulus (G′) and (d) loss factor (tan δ) of the crosslinked PDMS network recorded in a 10-cycle recycling process.
