From: High throughput data analyses of the immune characteristics of Microtus fortis infected with Schistosoma japonicum

Figure 2The alternative text for this image may have been generated using AI.

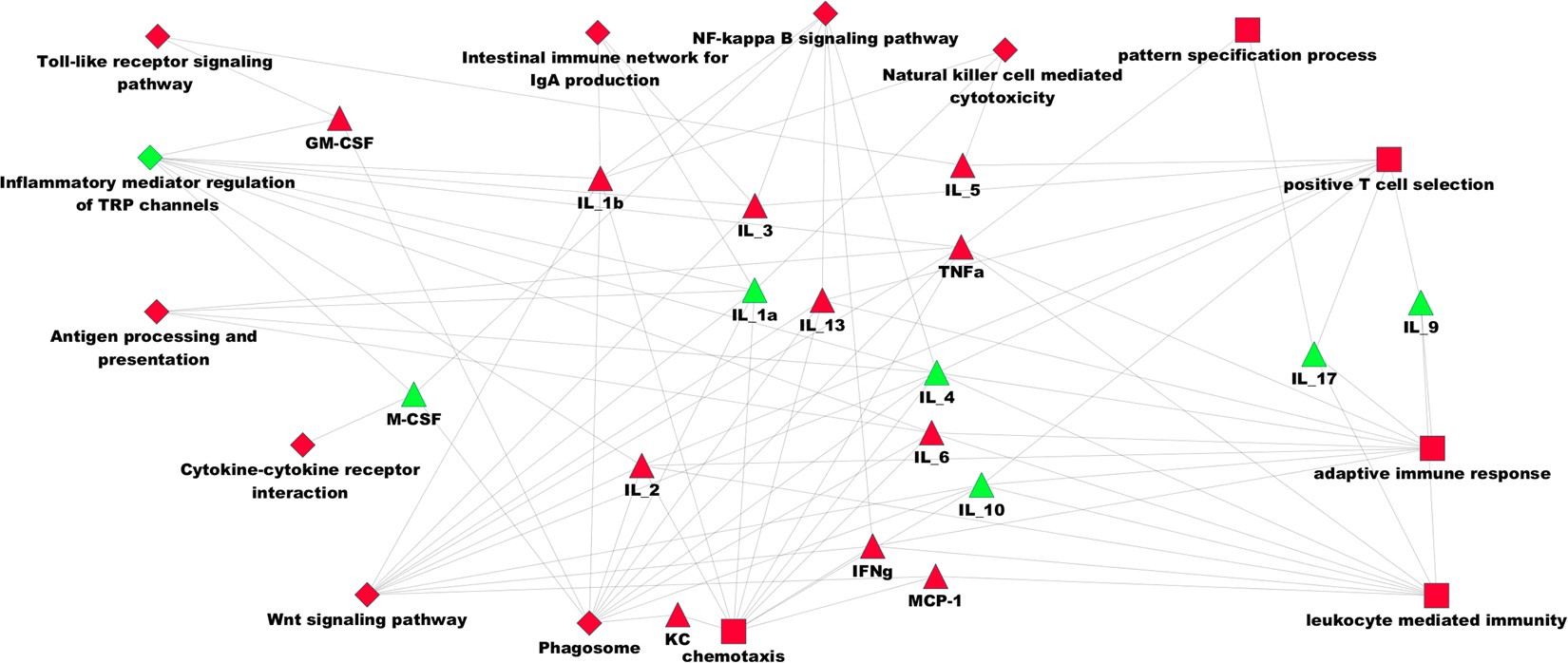

Regulation and interaction network model of 17 cytokines. The triangle represents cytokines. Green indicates down-regulation (Fold change <1), and red represents up-regulation (Fold change >1). The diamond denotes the KEGG signalling pathway, and the rectangle indicates biological processes. Red was significantly expressed (P value < 0.05), and green was not significantly expressed (P value > 0.05).
