Figure 2

From: Formation and purification of tailored liposomes for drug delivery using a module-based micro continuous-flow system

Figure 2

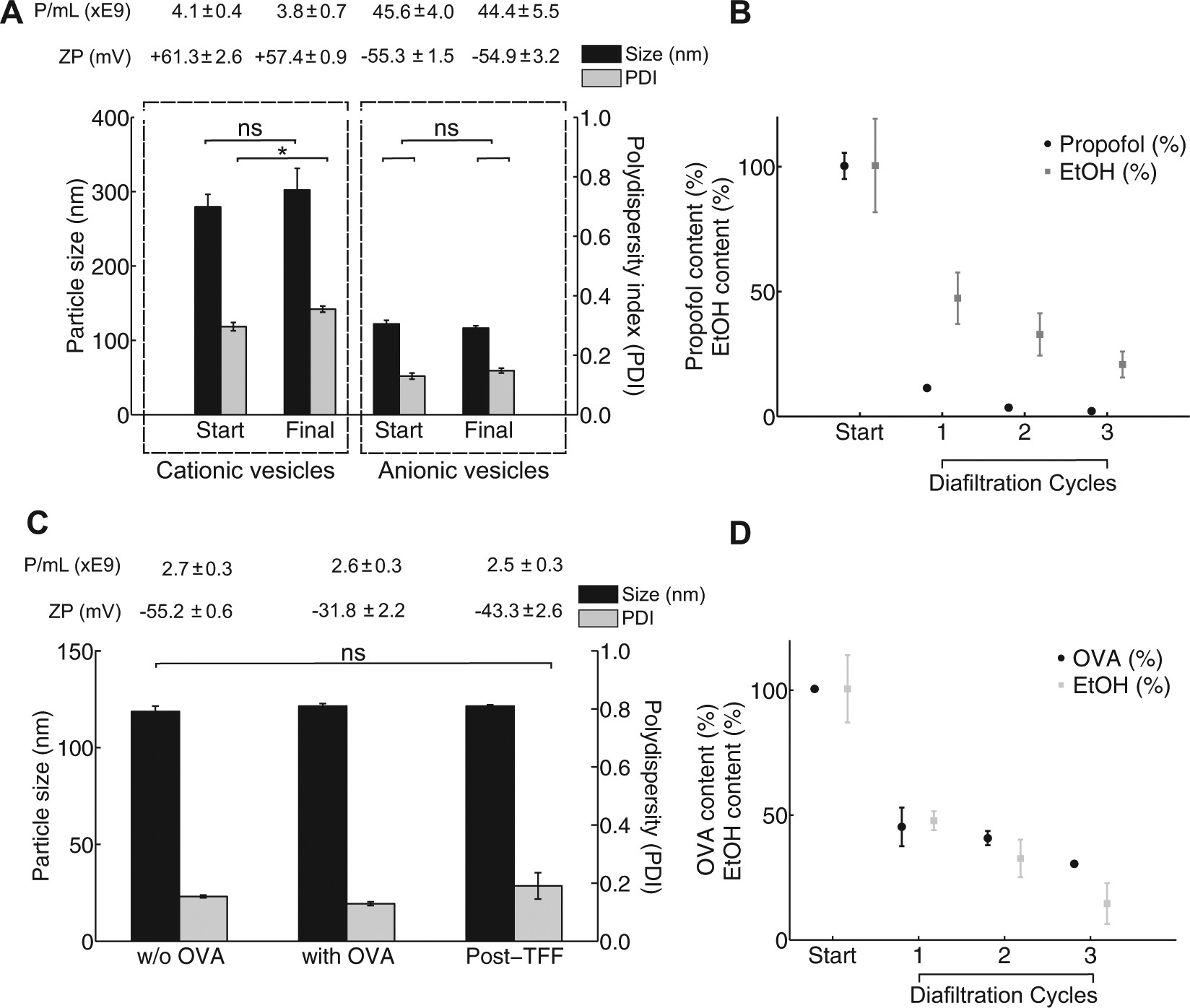

(A) Vesicle size, polydispersity (PDI), zeta potential (ZP) and particle concentration (P/mL) for cationic (DDA:TDB) and anionic (DPPG:DPPC:Chol) liposomes before and after the TFF purification. (B) Images from NTA show vesicles present in the retentate side only. (C) Propofol and ethanol removal achieved over three diafiltration cycles for anionic liposomes (DPPG:DPPC:Chol), expressed as a percentage of the initial amount of contaminants present.
