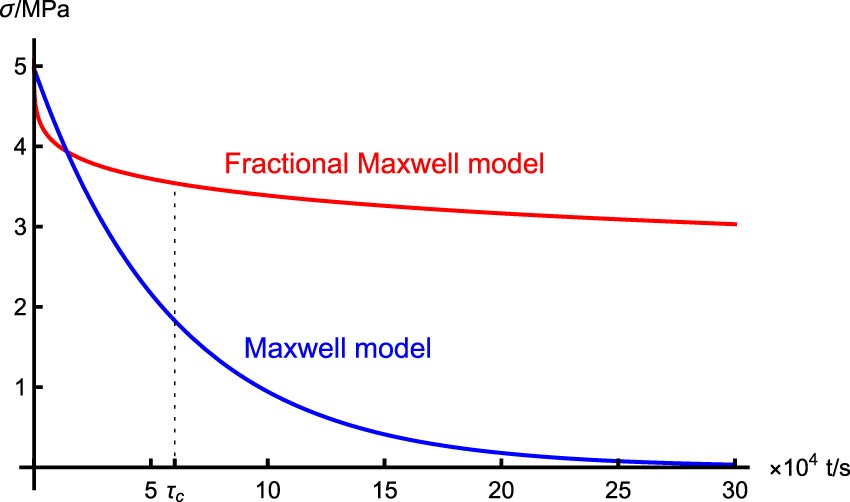

Figure 5
Stress relaxation process of the H20-6 sample as predicted by the fractional and traditional Maxwell models, respectively. For the latter, there is a characteristic time scale τ c , and the stress rapidly decreases towards a vanishing value when t ≥ τ c . On the contrary, the former undergoes a much slower rate of decrease at later times.
