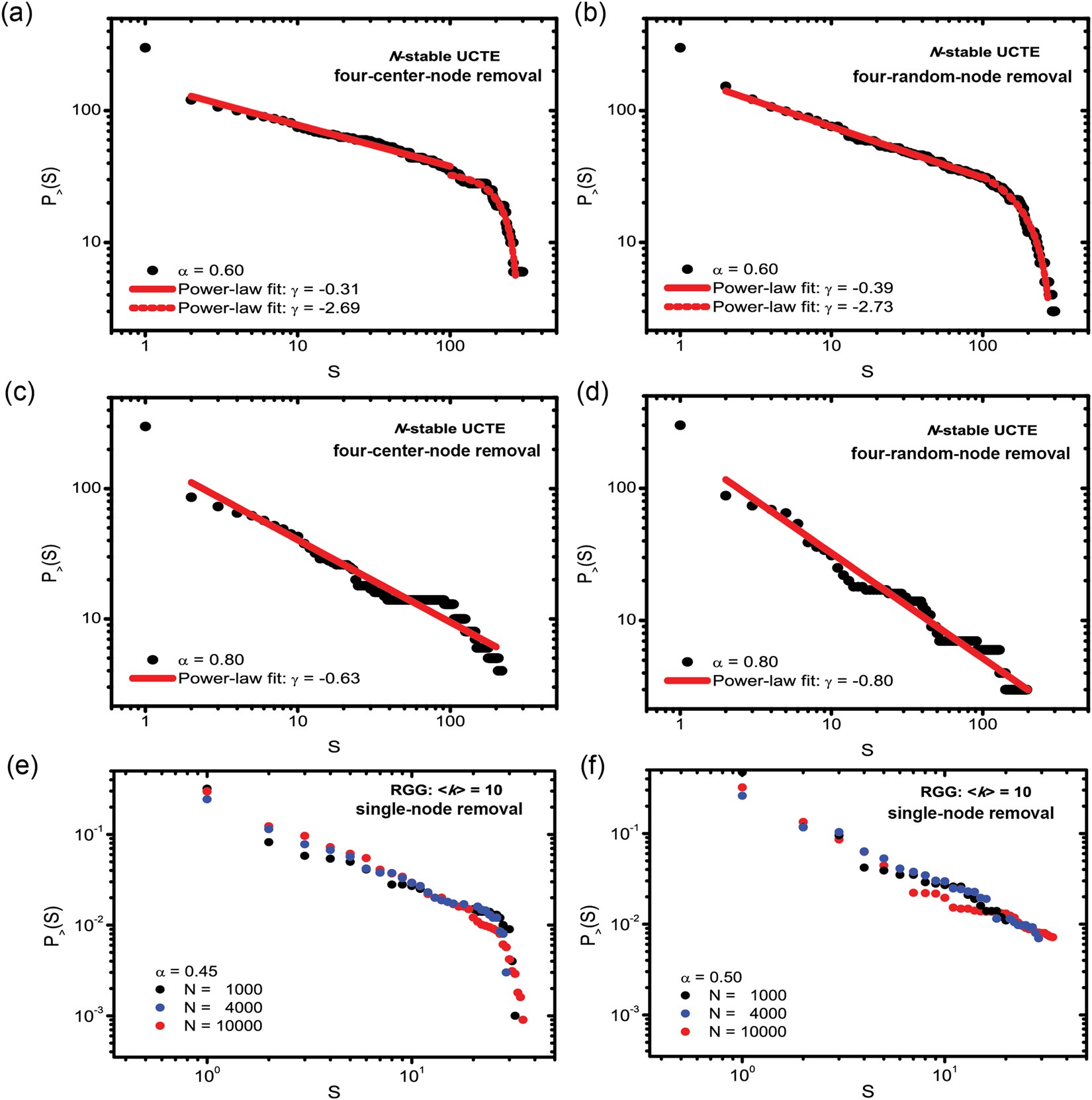

Figure 7
Power-law tail of cascade size distributions in the phase transition regime. (a) Power-law fit (red line) of four-clustered-node removals (black dots) with α = 0.6. (b) Power-law fit (red line) of four-random-node removals (black dots) with α = 0.6. (c) Power-law fit of four-clustered-node removals (black dots) with α = 0.8. (d) Power-law fit (red line) of four-random-node removals (black dots) with α = 0.8. Small event regime 1 ≤ S ≤ 200, large event regime: 201 ≤ S ≤ 300. (e) Power-law trend of cascade size distributions for random single-node removal in RGGs of different systems sizes and 〈k〉 = 10 for α = 0.45 and (f) α = 0.50.
