Figure 2 | Scientific Reports

Figure 2

From: Dietary docosahexaenoic acid (DHA) as lysophosphatidylcholine, but not as free acid, enriches brain DHA and improves memory in adult mice

Figure 2

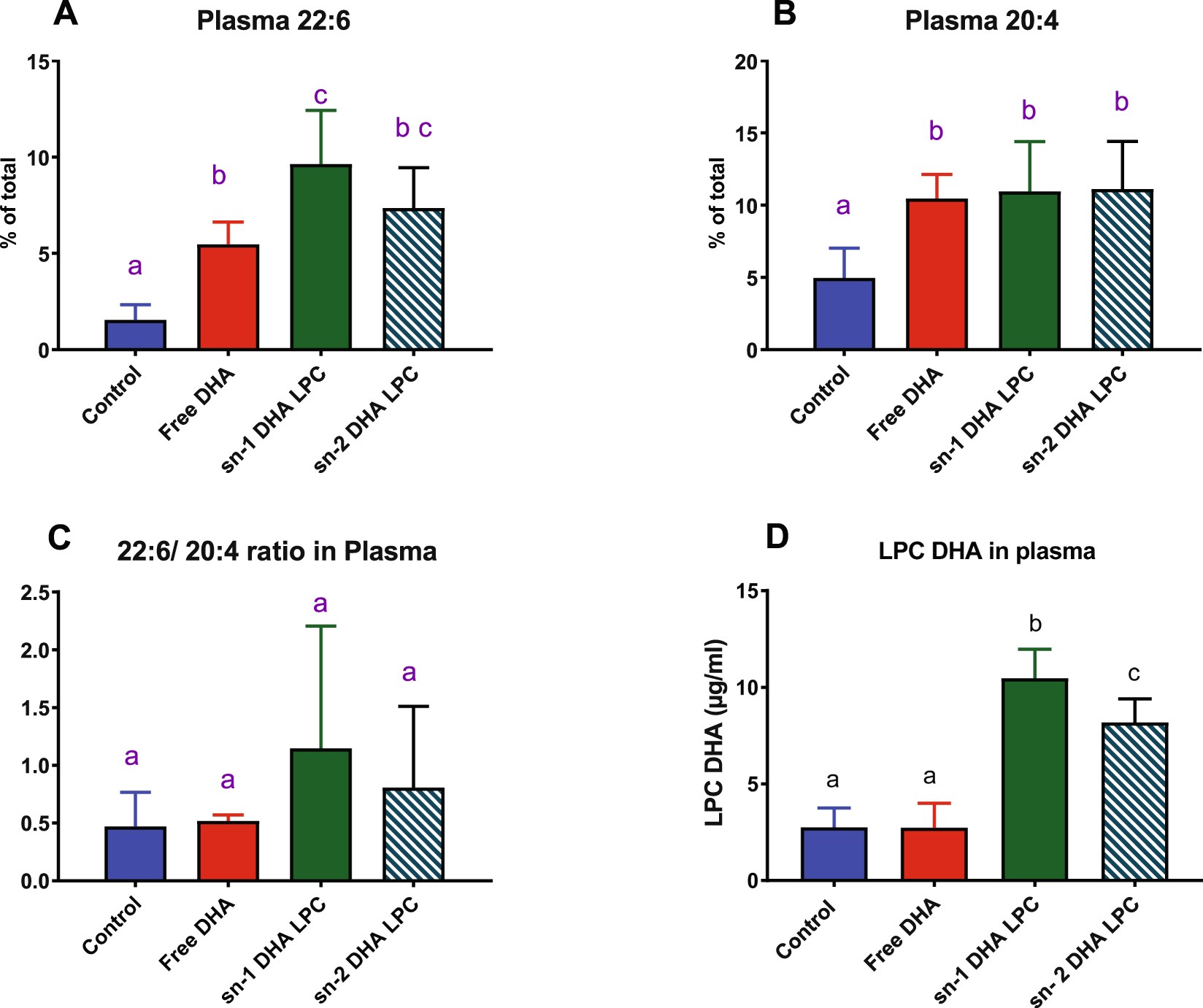

Effect of molecular carrier of dietary DHA on plasma levels (% of total fatty acids) of 22:6 (A), and 20:4 (B), on 22:6/20:4 ratio (C), and on LPC-DHA (µg/ml) (D). Results shown are mean ± SD (n = 8). Bars in each panel not sharing a common superscript are significantly different from each other (p < 0.05, one way ANOVA, and post-hoc Tukey test).
