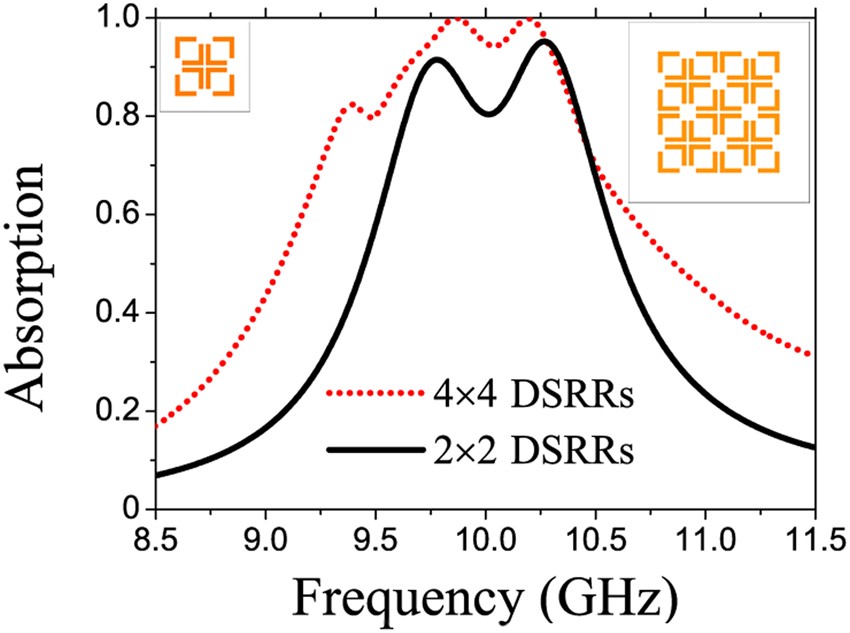

Figure 6

Comparison of the simulated absorption spectra between two MPAs with the unit cells of 2 × 2 (left inset) and 4 × 4 (right inset) DSRRs. The periodicity of 4 × 4 DSRR structure is 38 mm, which is as twice as that of the 2 × 2 DSRR structure.
