From: Comparative analysis reveals regulatory motifs at the ainS/ainR pheromone-signaling locus of Vibrio fischeri

Figure 1

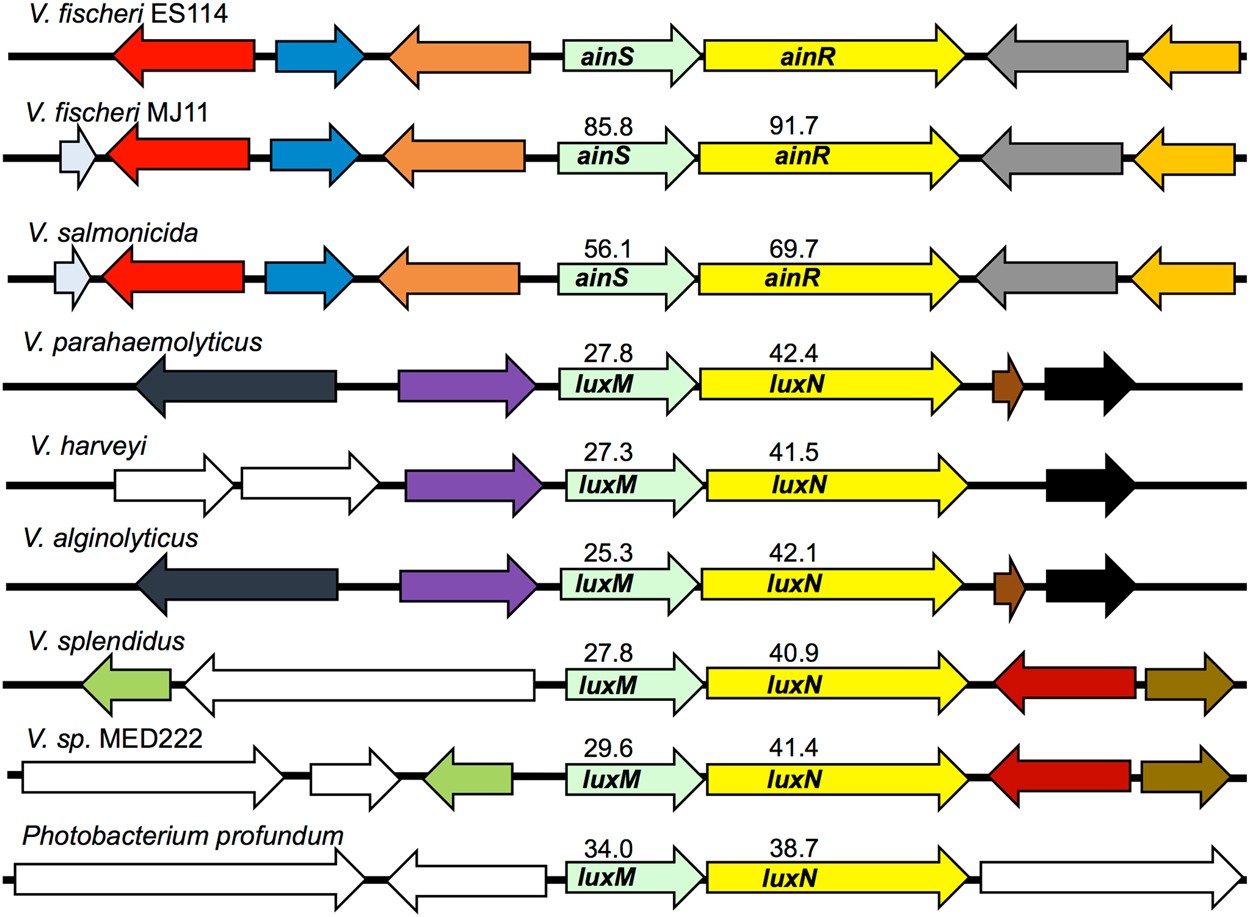

Homologs of V. fischeri AinS/AinR and synteny around the ain locus. Aligned sequences are from V. fischeri ES114 and MJ11, V. salmonicidia LF1238, V. parahaemolyticus RMID2210633, V. harveyi ATCC BAA-1116, V. alginolyticus 12G01, V. splendidus 12B01, Vibrio spp. MED222, and Photobacterium profundum SS9. Arrows of the same color share homology, white arrows have no homologs in the figure, and numbers indicate percent identity to AinS or AinR from V. fischeri ES114. The 10-kb region encompassing V. fischeri ES114 ainS is shown, and synteny was assessed using the SEED44 database.
