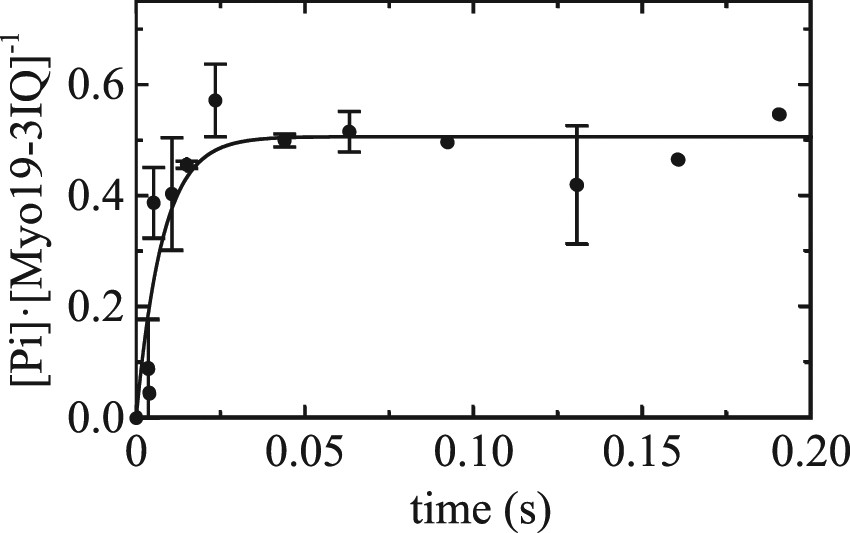

Figure 6
From: Kinetic adaptation of human Myo19 for active mitochondrial transport to growing filopodia tips
Time course of ATP hydrolysis and ADP·Pi burst of Myo19-3IQ. Time course of ADP-P i formation by mixing 4 µM Myo19-3IQ construct with 250 µM. ATP (initial concentrations) followed by quenching with equal volume of 2 M HCl (premixing concentration). The solid line is the best fit of the data to the Eq. 10 with k ss being slow and thus was ignored. Error bars represent standard deviation of 2-3 independent experiments.
