Figure 3
From: Electron tomography and fractal aspects of MoS2 and MoS2/Co spheres

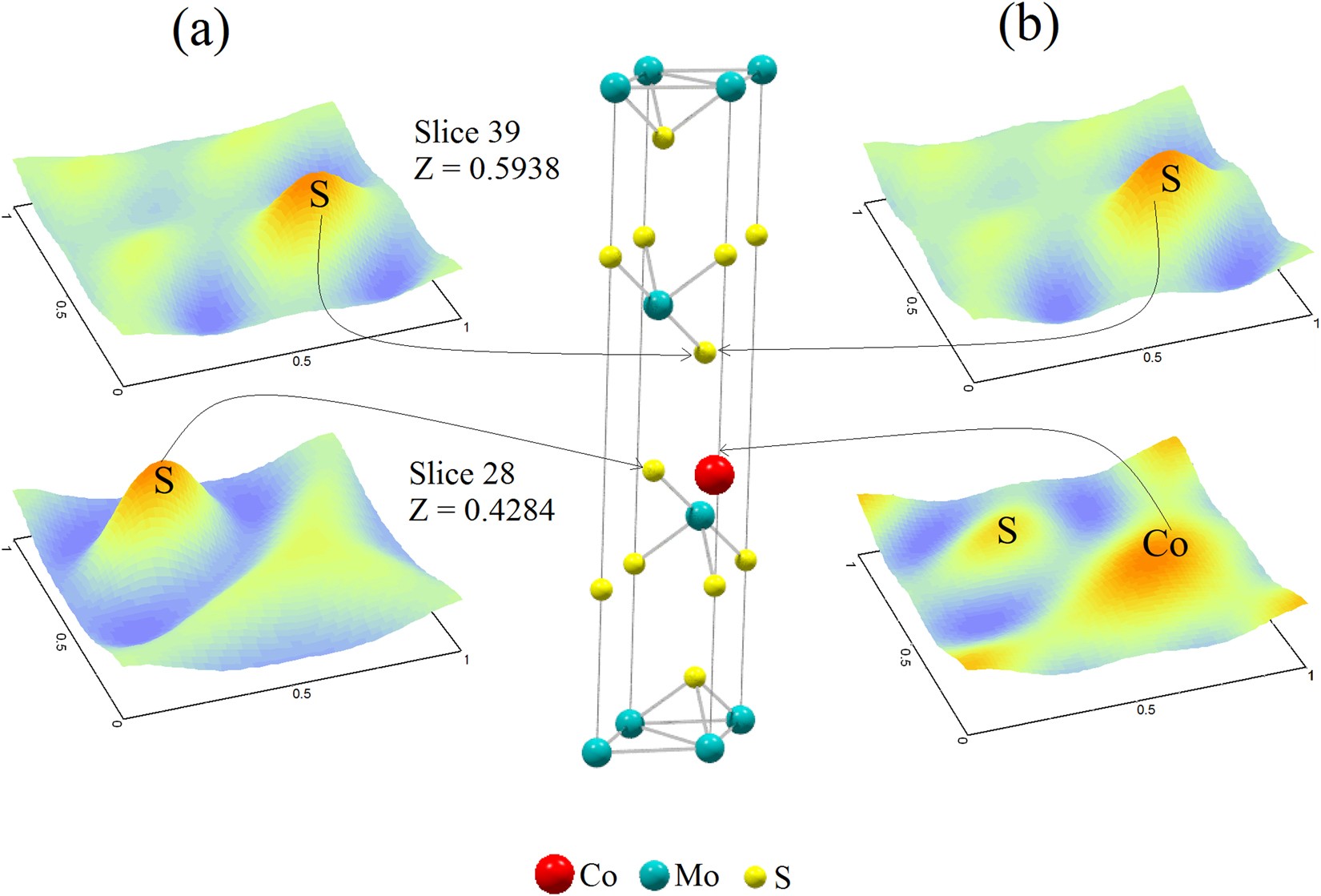

(a) Electron density maps to indicate cobalt atoms at the MoS2 crystallographic lattice and (b) for Cobalt atoms into the MoS2 lattice. (Data calculated using information from powder X-ray diffraction and DFT numerical simulations).
