Figure 6
From: Electron tomography and fractal aspects of MoS2 and MoS2/Co spheres

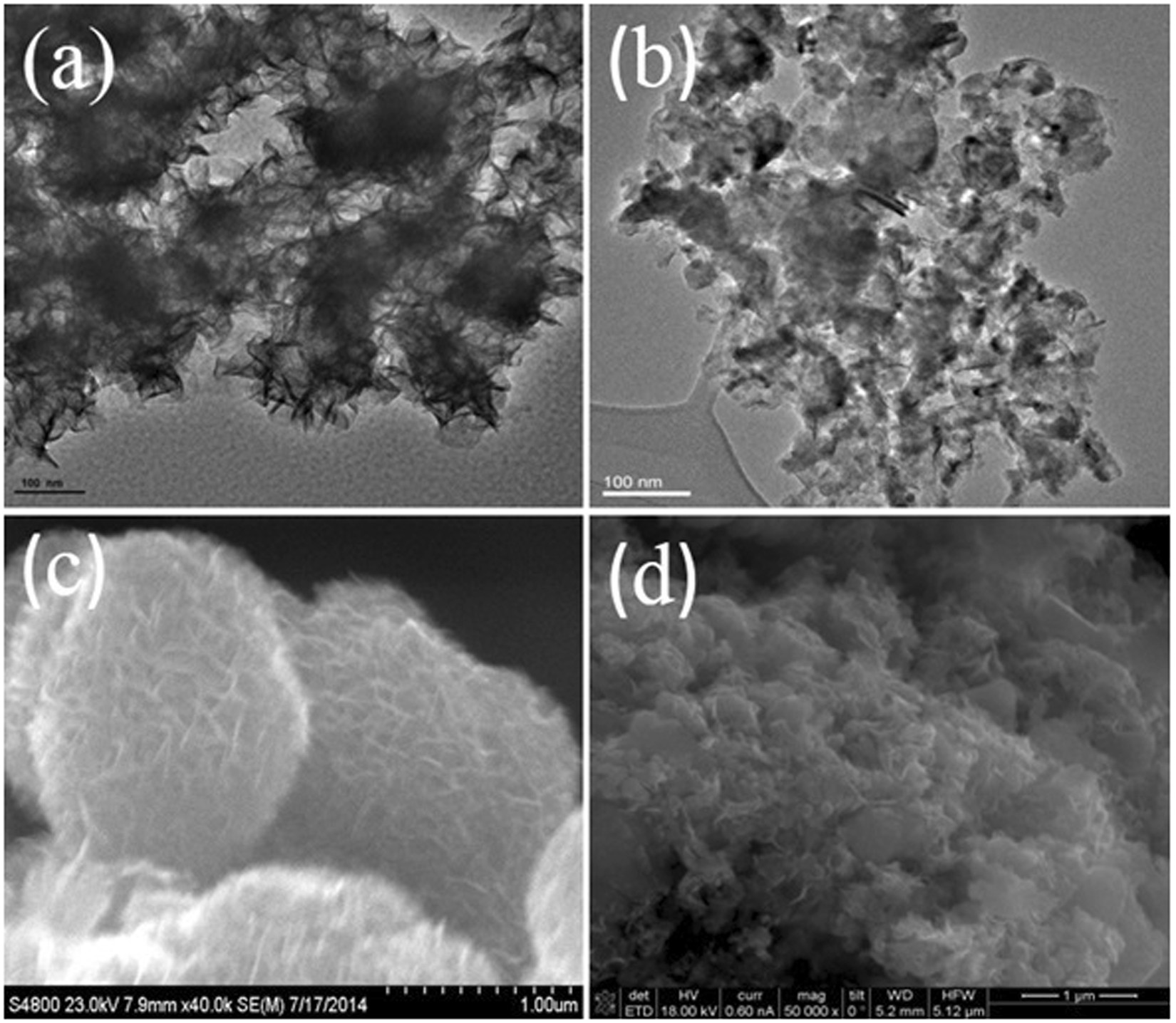

High resolution transmission electron microscopy images: (a and b) are TEM-images (scale bar 100 nm) corresponding to MoS2 and Co/MoS2 respectively. (c and d) are scanning electron microscopy images (scale bar 1.0 µm) of MoS2 and Co MoS2 using both techniques, to determine surface dispersion when cobalt atoms are added, as reported before18.
