Figure 3
From: Structural Transformation of Biochar Black Carbon by C60 Superstructure: Environmental Implications

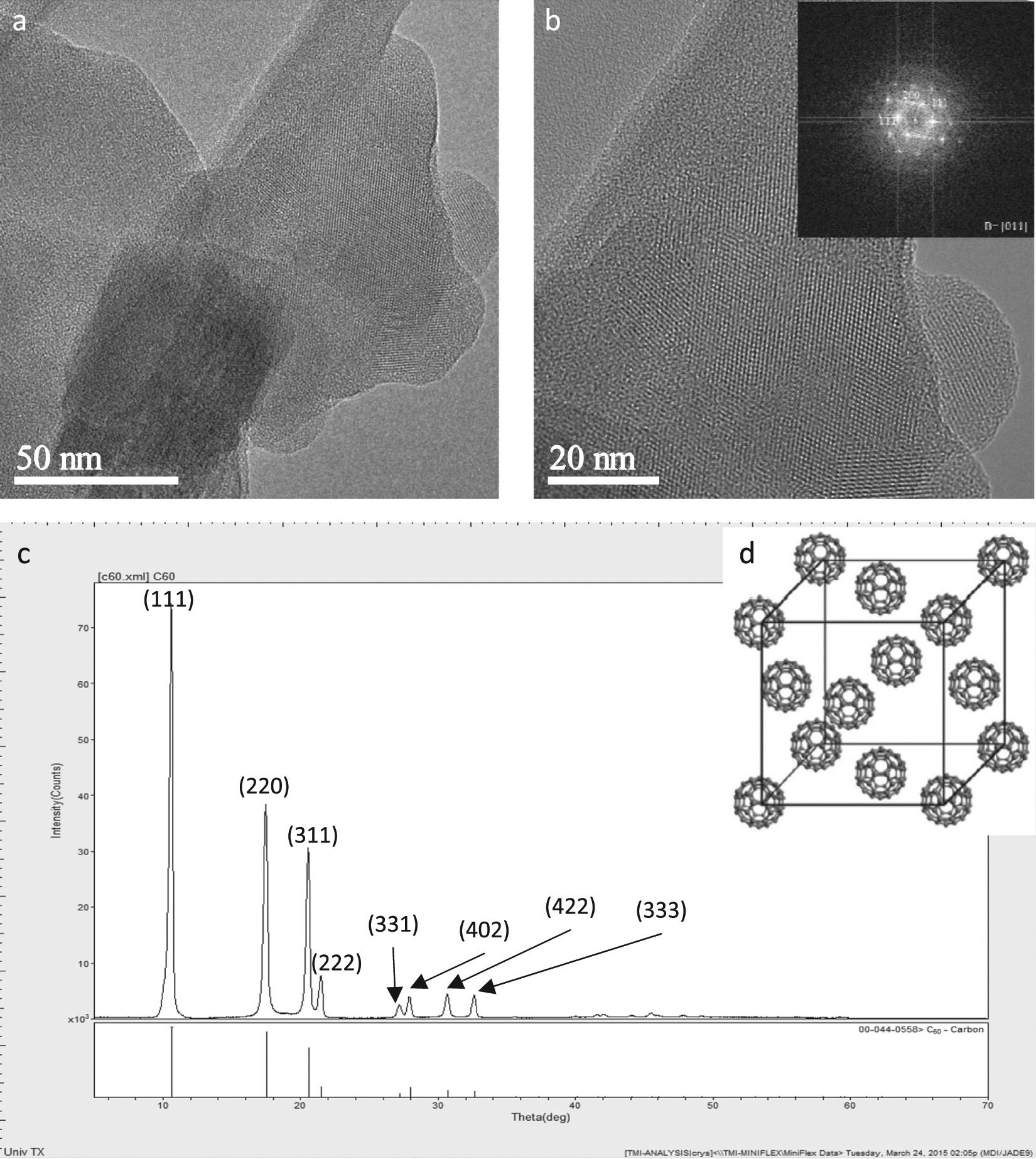

(a) Phase contrast TEM images of nC60-stir. (b) Higher magnification image of a). The FFT shown in the inset indicates a fcc C60 superstructure. (c) X-ray diffraction of nC60-stir (top spectrum) and C60 template from XRD database (bottom spectrum). (d) Illustrative fcc C60 superstructure34.
