Figure 2 | Scientific Reports

Figure 2

From: A resource of large-scale molecular markers for monitoring Agropyron cristatum chromatin introgression in wheat background based on transcriptome sequences

Figure 2

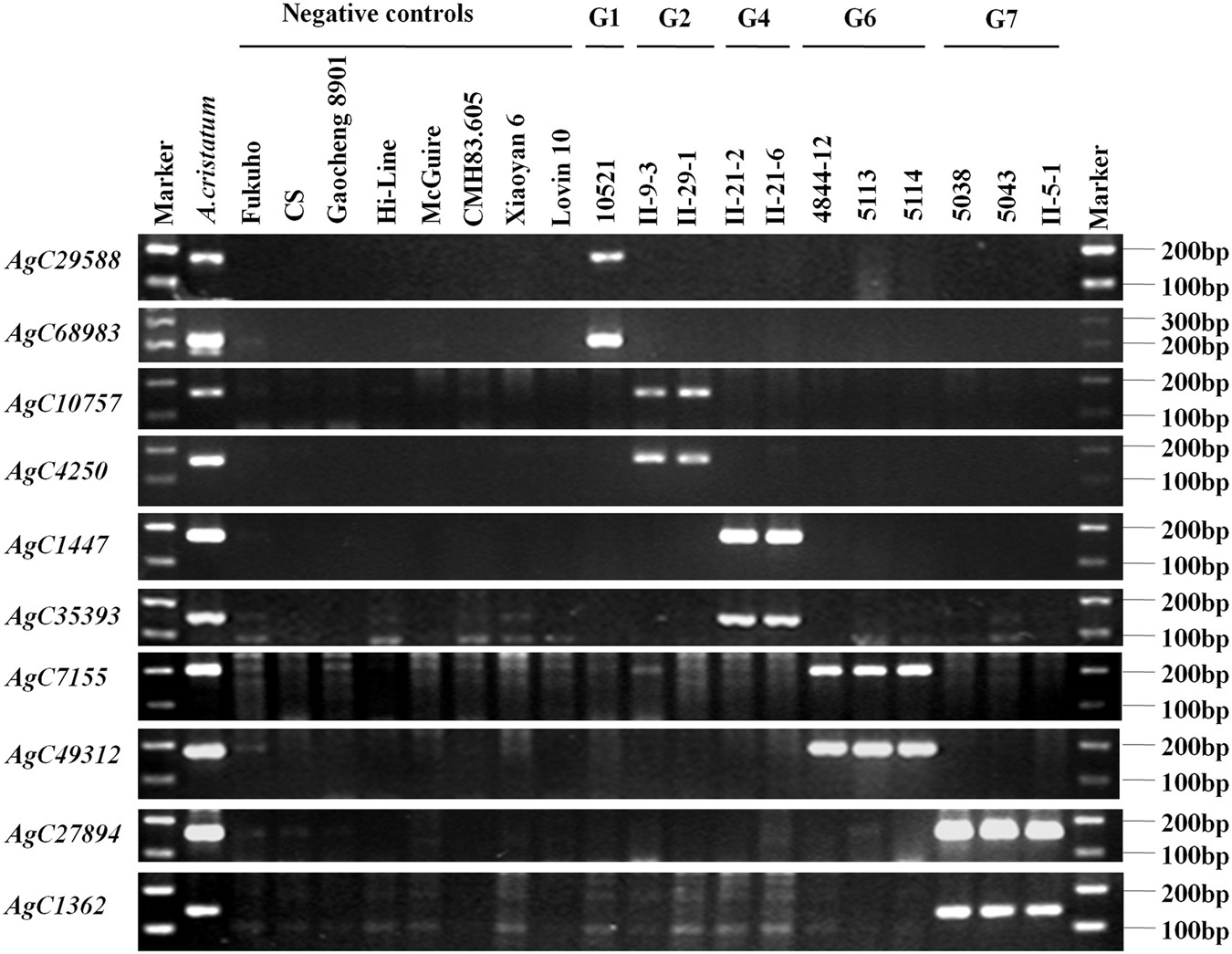

The screening of EST-STS markers specific for A. cristatum addition lines in a wheat genetic background. The amplification product of EST-STS markers were run on 2% agarose gel. G1, G2, G4, G6, and G7 indicate the homologous groups of alien chromosomes of A. cristatum. The full-length gels are included in the Supplementary Information file.
