Figure 5
From: Bioinspired Fabrication of one dimensional graphene fiber with collection of droplets application

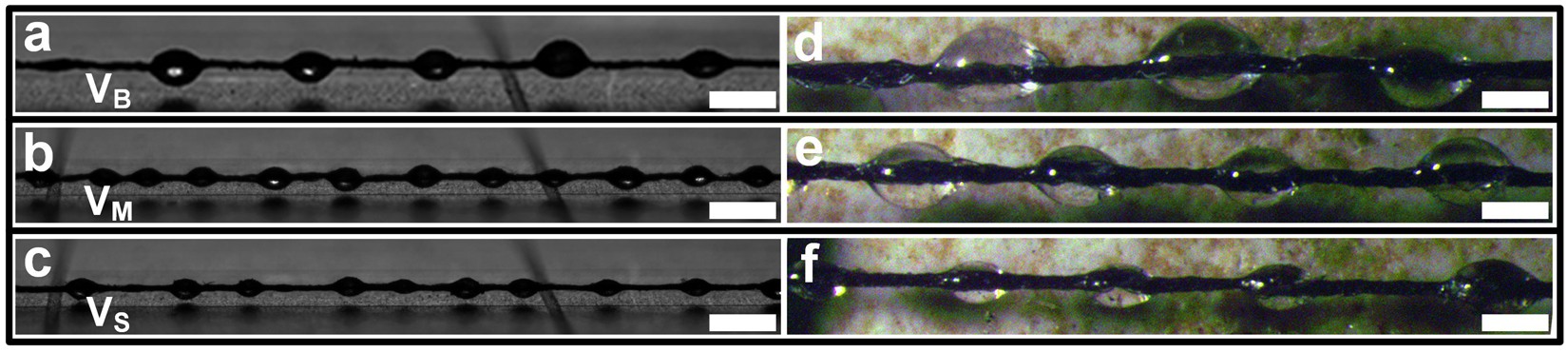

(a–c) and (d–f) Optical and Stereo microscope images of PDMS spindle knot on fiber surface with different size spindle-knots respectively (a–c scale bar: 60 μm, d-f scale bar: 200 μm). (Spindle knots with maximum volume: VB, spindle knots with middle volume: VM, spindle knots with minimum volume: VS).
