Figure 16
From: Trap diversity and character evolution in carnivorous bladderworts (Utricularia, Lentibulariaceae)

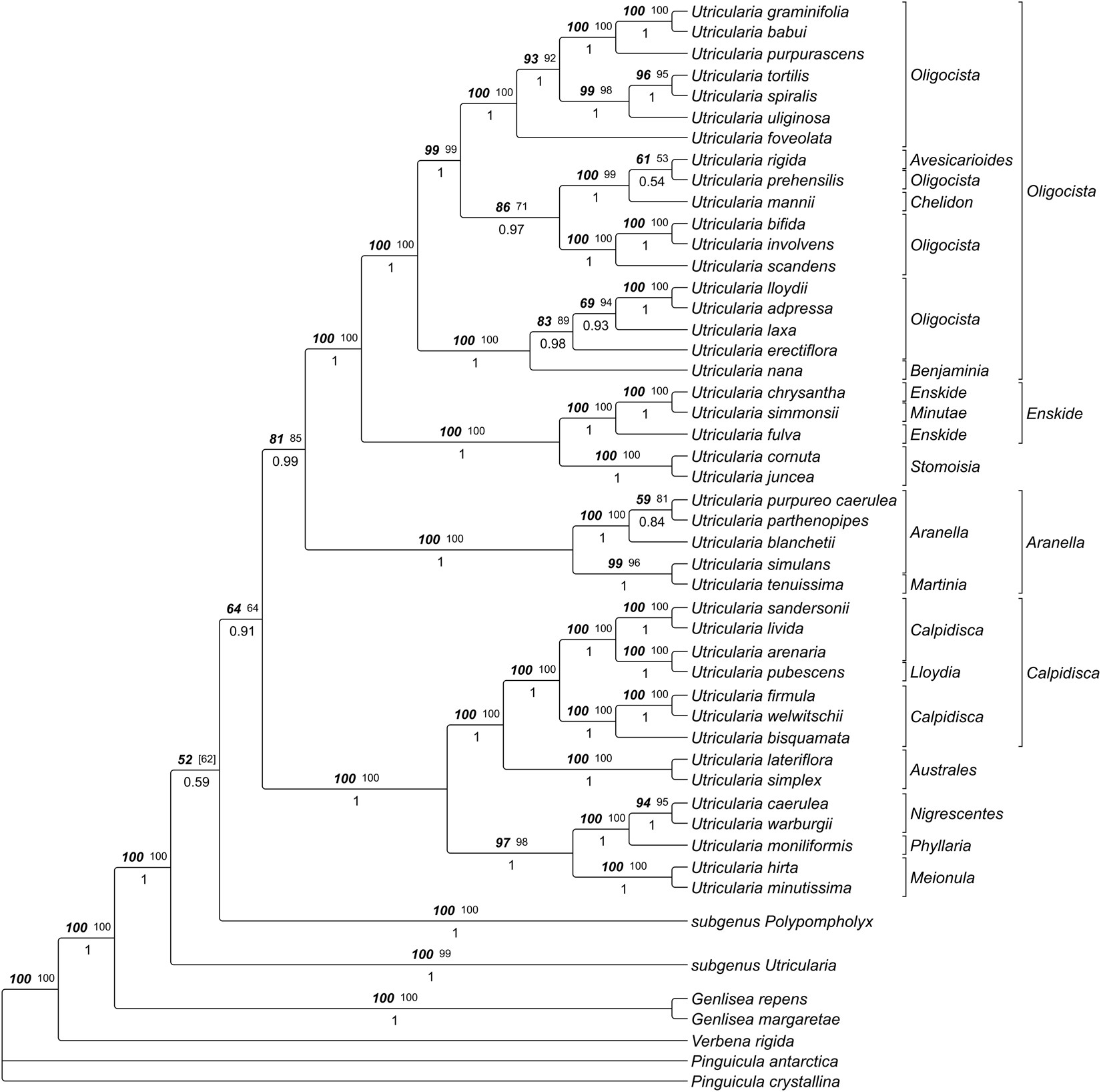

Phylogeny of U. subgenus Bivalvaria as inferred with Maximum Likelihood, Maximum Parsimony and Bayesian Inference of trnK/matK sequences. Tree topology was taken from the ML analysis, numbers above branches indicate ML bootstrap percentages (bold italics; right), and MP bootstrap percentages (plain, left), numbers below branches are posterior probabilities from Bayesian Inference. Classification according to ref.5, as modified by ref.9, is indicated to the right of the tree.
