Figure 7
From: A high selective methanol gas sensor based on molecular imprinted Ag-LaFeO3 fibers

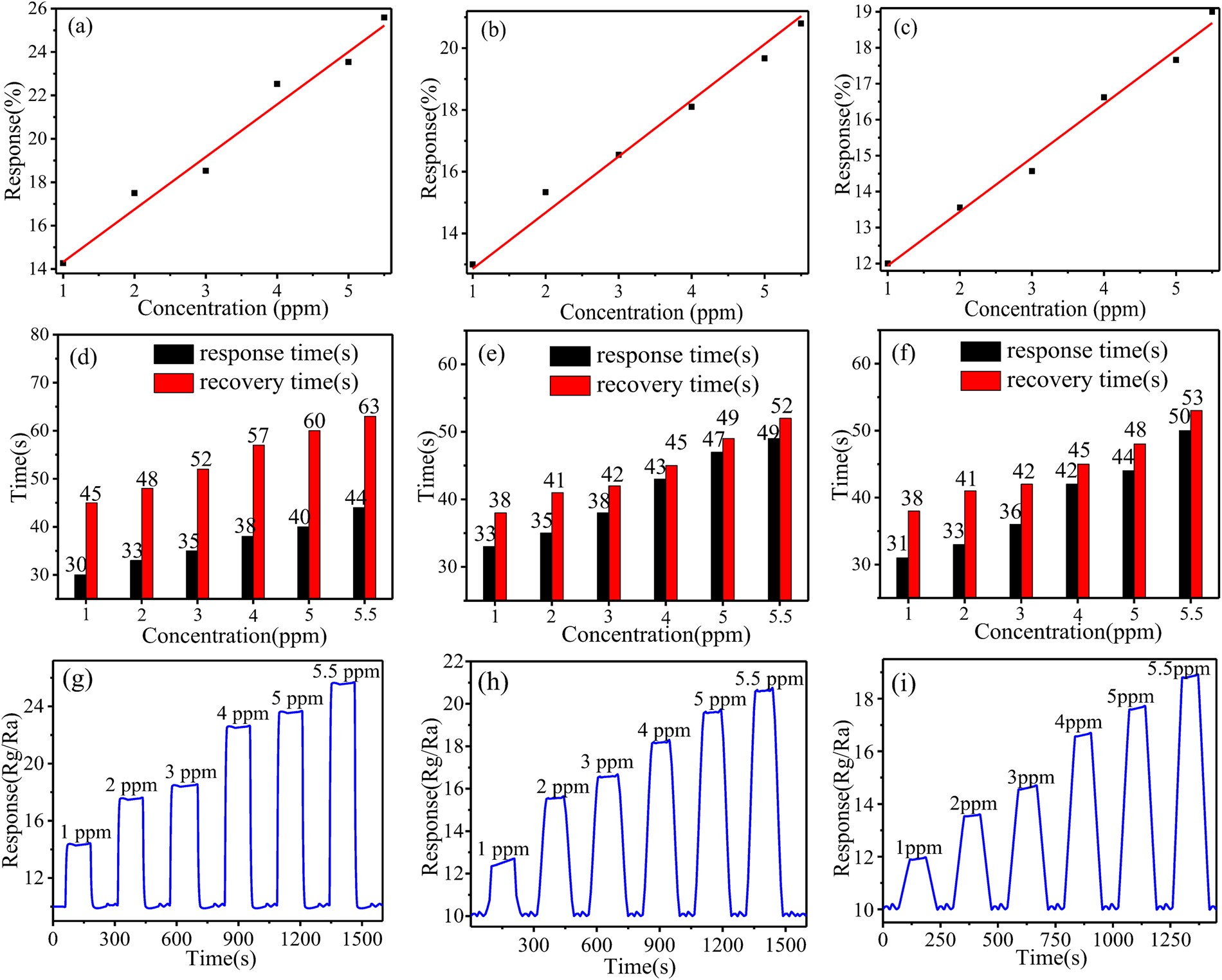

The relationship of response to different concentrations methanol gas based on (a) ALMF-1; 175 °C, (b) ALMF-2; 125 °C and (c) ALMF-3; 125 °C; response-recovery times to different concentrations of methanol gas based on (d) ALMF-1; 175 °C, (e) ALMF-2; 125 °C and (f) ALMF-3; 125 °C; dynamic response of the ALMFs sensor to methanol with increasing concentrations based on (g) ALMF-1; 175 °C, (h) ALMF-2; 125 °C and (i) ALMF-3; 125 °C.
