Figure 5
From: Ethyl cellulose nanodispersions as stabilizers for oil in water Pickering emulsions

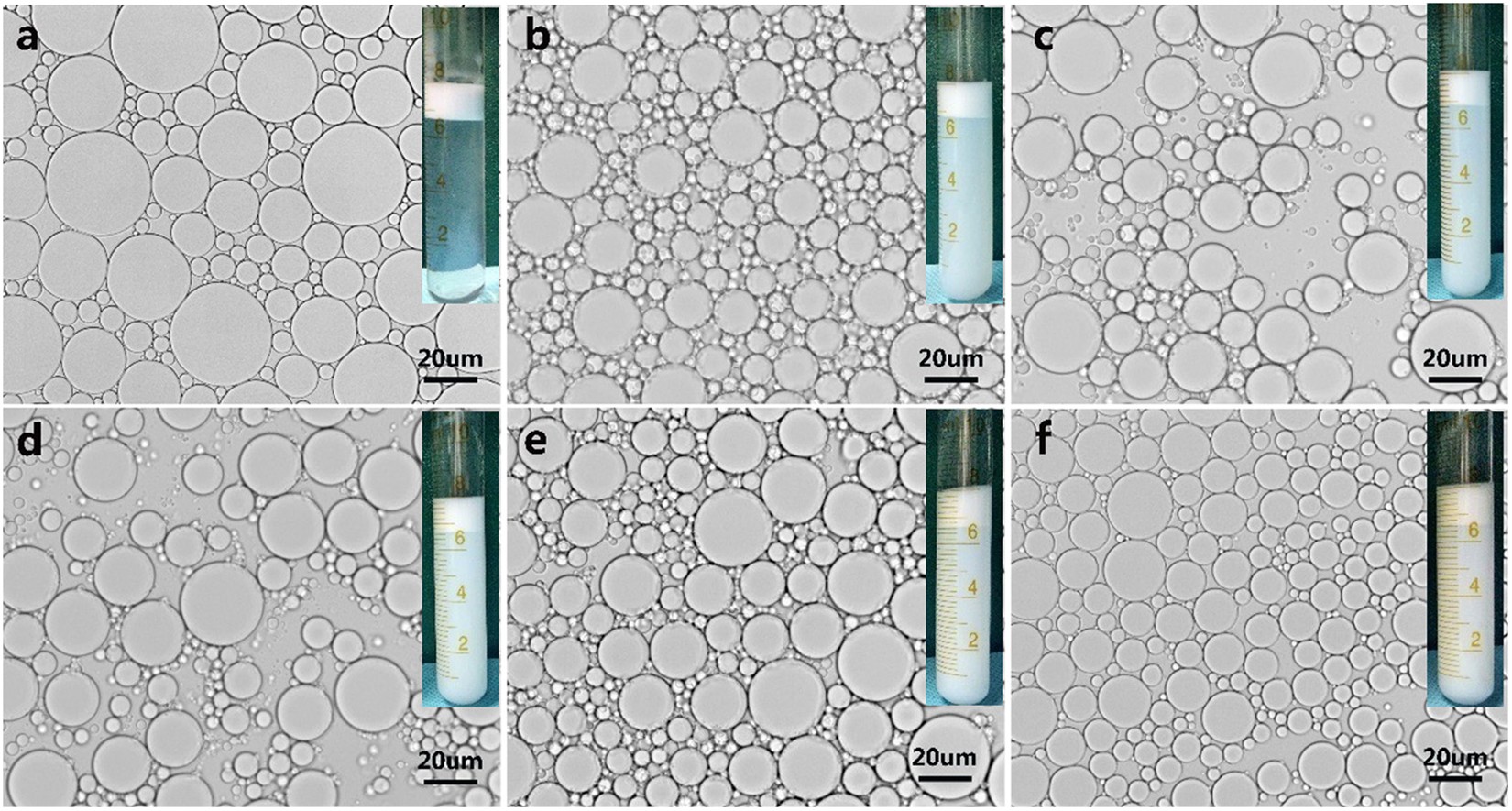

Optical microscopy of Pickering emulsions stabilized by 0.5% Tween 80 in tandem with different concentration of EC dispersion, (a) 0%, (b) 0.4%, (c) 0.6%, (d) 0.8%, (e) 1.0%, (f) 1.2%.
