Figure 9
From: Inverse Resolution Limit of Partition Density and Detecting Overlapping Communities by Link-Surprise

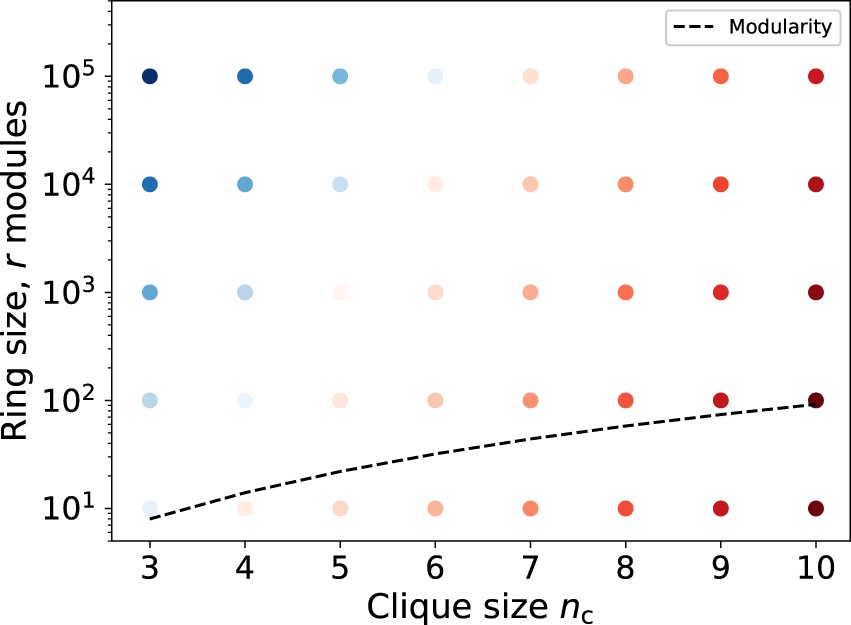

The resolution limit of Link-Surprise. The detectable region of the ring of m modules using Link-Surprise and modularity. Each module is a clique with n c nodes. Red and blue dots represent detectable and undetectable conditions by Link-Surprise, respectively. Darker shade corresponds to a larger absolute difference between the Link-Surprise values of two separate cliques and their merged counterpart. Black dotted line corresponds to the detectable limit of modularity as shown in r = n c (n c  − 1) + 29.
