Figure 3
From: Separate neural representations of depression, anxiety and apathy in Parkinson’s disease

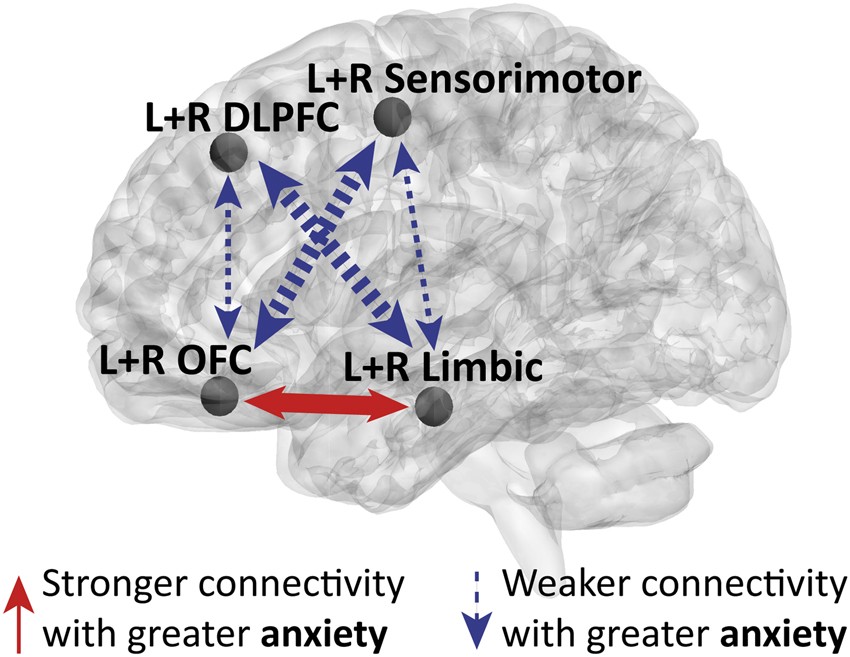

Illustration of functional connections predicted by anxiety in PD patients. Functional connections predicted by anxiety while controlling for other neuropsychiatric scales and UPDRS-III are indicated by arrows on a 3D brain template. Positive associations are indicated by red solid arrows and negative associations by blue dashed arrows. The width of the arrows represents the number of functional connections between the regions (see Supplementary Table S2 for the full list of connections). Abbreviations: DLPFC, dorsolateral prefrontal cortex; Limbic, limbic regions; OFC, orbitofrontal cortex; Sensorimotor, sensorimotor cortex; L, left; R, right. P < 0.05, FDR corrected for multiple comparisons.
