Figure 6
From: Simultaneous fusion, imaging and encryption of multiple objects using a single-pixel detector

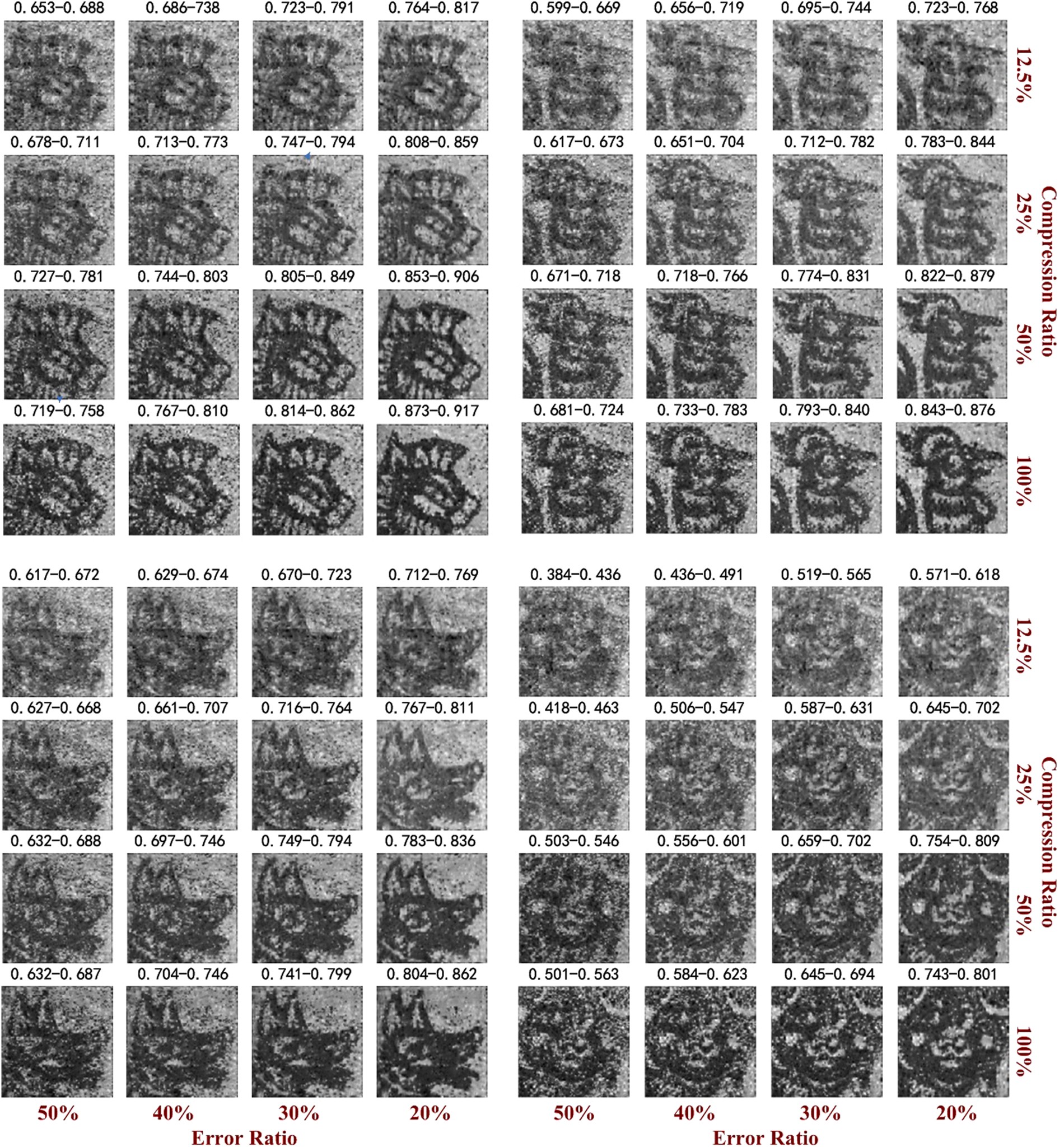

Image encryption experiment using indirect reflected light in the second case. The results under error ratios of 50%, 40%, 30% and 20% for the encoded matrices are shown. The numbers indicate the correlation coefficients between the recovered images and the reconstruction utilizing the complete Hadamard basis for direct reflected light (100% compression ratio).
