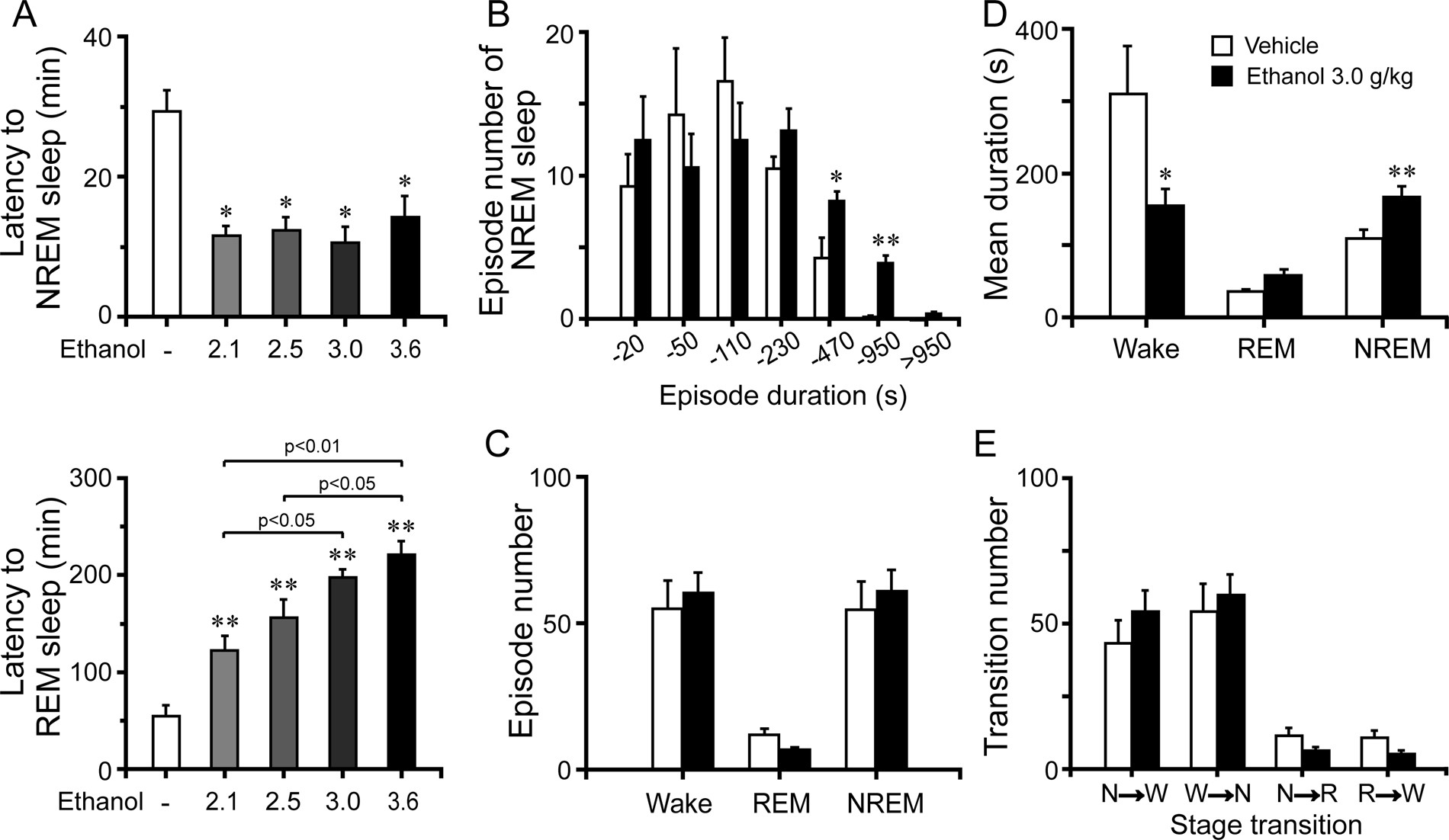

Figure 2
From: Adenosine A2A receptor mediates hypnotic effects of ethanol in mice
Changes in sleep latency and architecture produced by administration of ethanol. Effect of ethanol on NREM and REM sleep latency (A). Numbers of NREM sleep bouts (B), total episode numbers (C), mean durations (D), and stage transitions (E) during the first 5 h after administration 3.0 g/kg ethanol. Values are mean ± SEM (n = 10). (A) *P < 0.05 or **P < 0.01 indicates significant differences assessed by one-way ANOVA followed by Fisher’s PLSD test. (B–E) *P < 0.05 or **P < 0.01 indicates significant differences performed using non-paired, two-tailed Student’s t test.
