Figure 3

From: Growth-Induced In-Plane Uniaxial Anisotropy in V2O3/Ni Films

Figure 3The alternative text for this image may have been generated using AI.

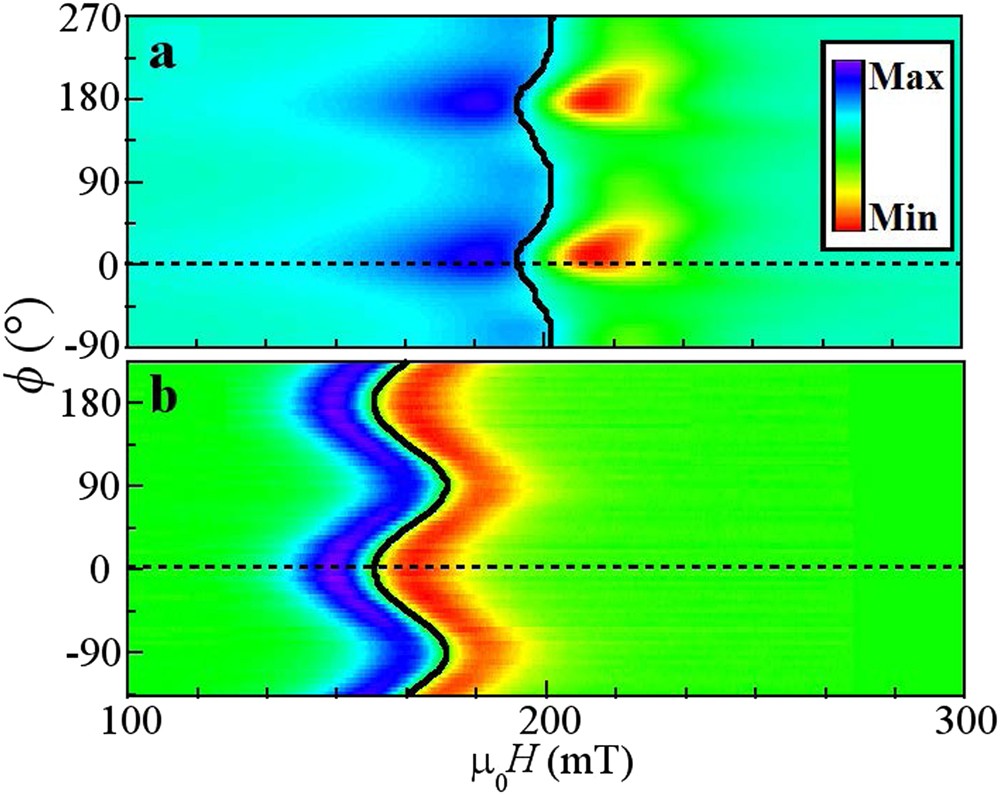

Angular-dependent ferromagnetic resonance spectrum of (a) V2O3/Ni and (b) Ni on sapphire. Contrast indicates the differential absorption. The peak in the absorption for each angle is identified by the H Res. lines. The y-axis identifies the angle ϕ between the applied magnetic field and the (\(01\mathop{5}\limits^{\bar{} }\)) diffraction vector. H Res. is indicated by the solid curve.
