Figure 1
From: Insensitive ionic bio-energetic materials derived from amino acids

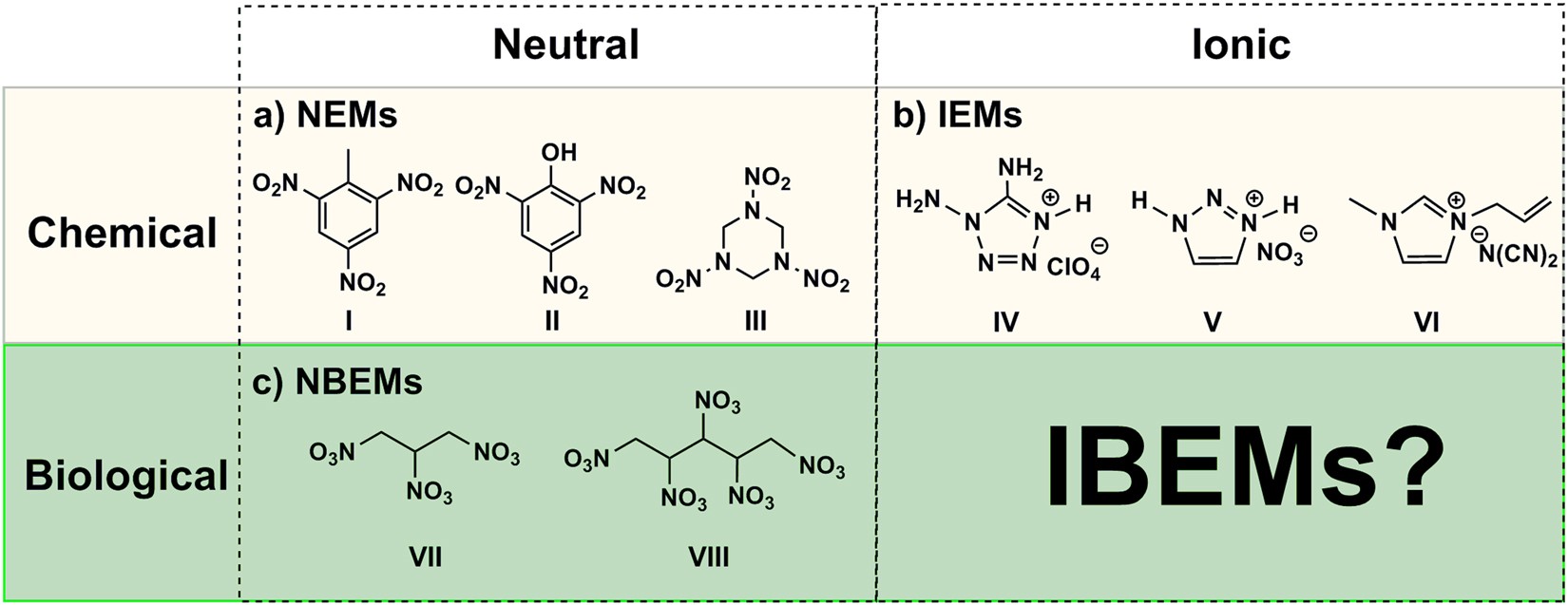

(a) Structures of NEMs from chemicals. I: TNT, II: PA, III RDX. (b) Structures of common IEMs from chemicals. IV: 1,5-Diamino-4-H−1,2,3,4-tetrazolium perchlorate, V: 1,2,3-triazolium nitrate, VI: 1-Allyl-3-methylimidazolium dicyanamide. (c) Structures of common NBEMs from biomolecules. VII: NG, VIII: XPN.
