Figure 7
From: Tomographic in vivo microscopy for the study of lung physiology at the alveolar level

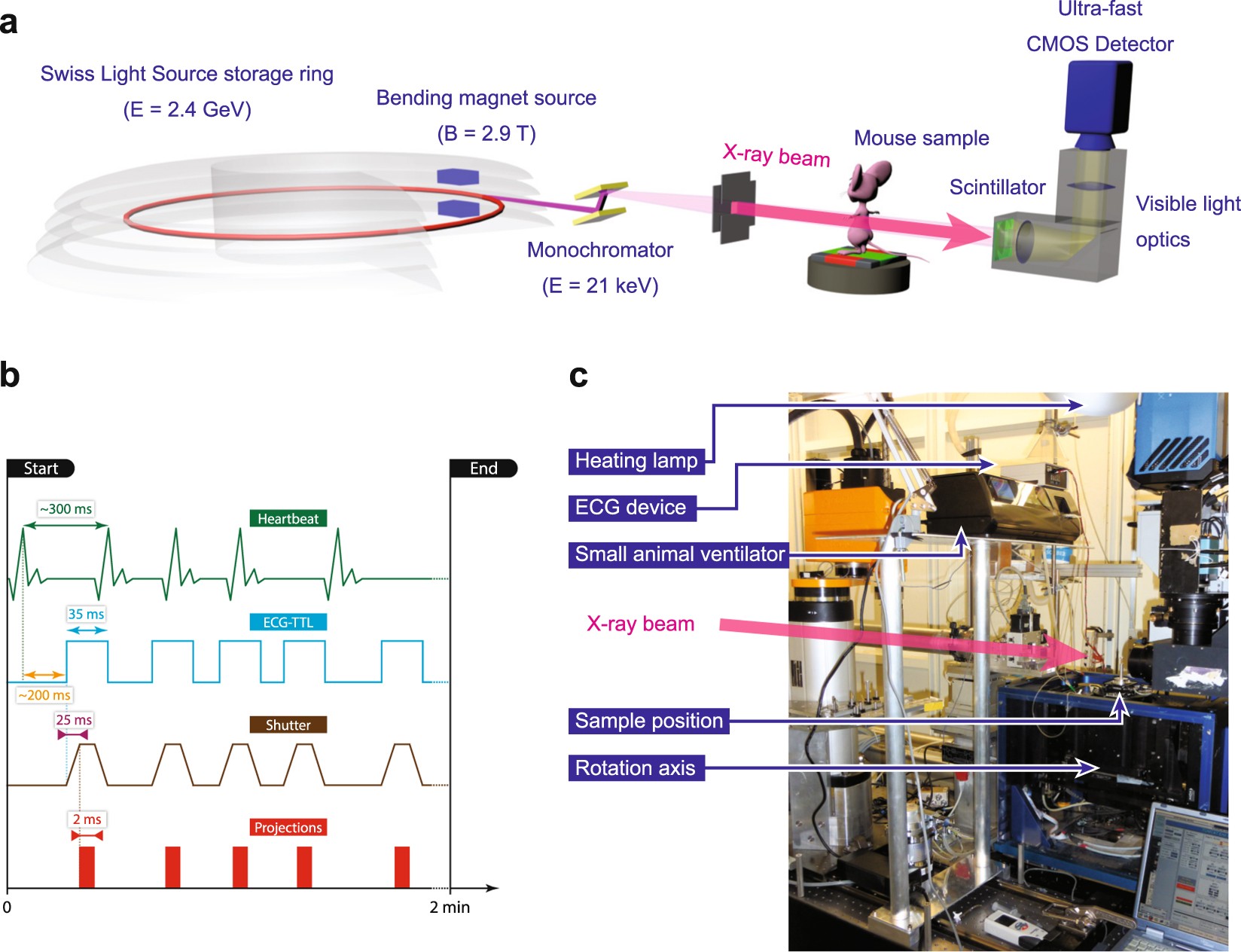

Schematic description of the imaging layout (a) at the X02DA TOMCAT beamline with the (b) complete triggering schematic for the prospective heartbeat-triggered gating technique and (c) the final in vivo endstation design with all accompanying components.
