Figure 4

From: Genetic connection between cell-wall composition and grain yield via parallel QTL analysis in indica and japonica subspecies

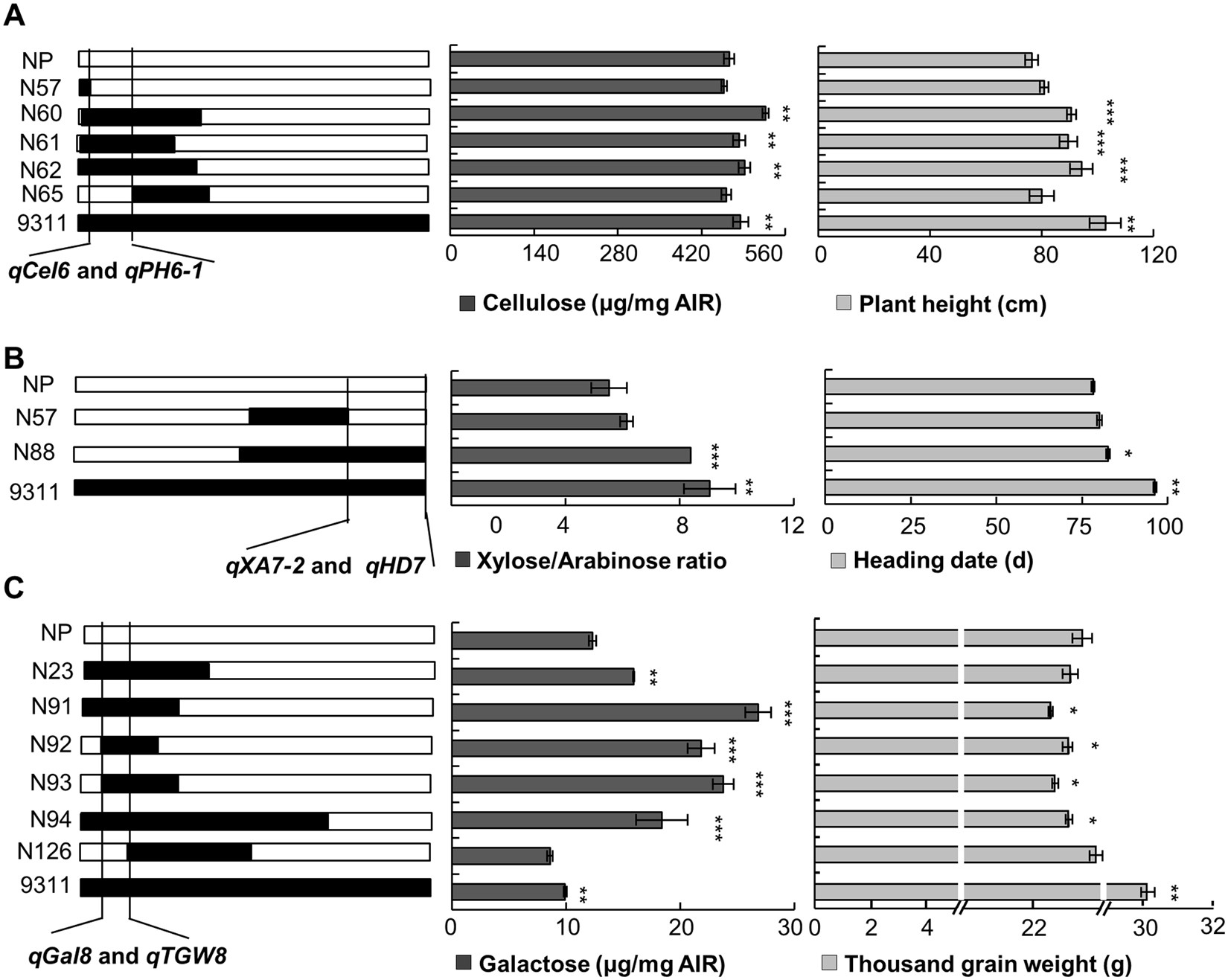

Figure 4

Verification of the overlapped QTLs for cell-wall composition and grain yield-related traits by the CSSLs. (A) The co-localized QTLs on Chr. 6 and examining the cellulose content and plant height in the CSSLs. (B) The co-localized QTLs on Chr. 7 and examining the XA ratio and heading date in the CSSLs. (C) The co-localized QTLs on Chr. 8 and examining the galactose content and thousand-grain weight in the CSSLs. The black and white rectangles in this figure represent 9311 and NP genomic region, respectively. ***P < 0.001, **P < 0.01, and *P < 0.05 by two-tailed t-test.
