Figure 5

From: Contralateral cortico-ponto-cerebellar pathways reconstruction in humans in vivo: implications for reciprocal cerebro-cerebellar structural connectivity in motor and non-motor areas

Figure 5

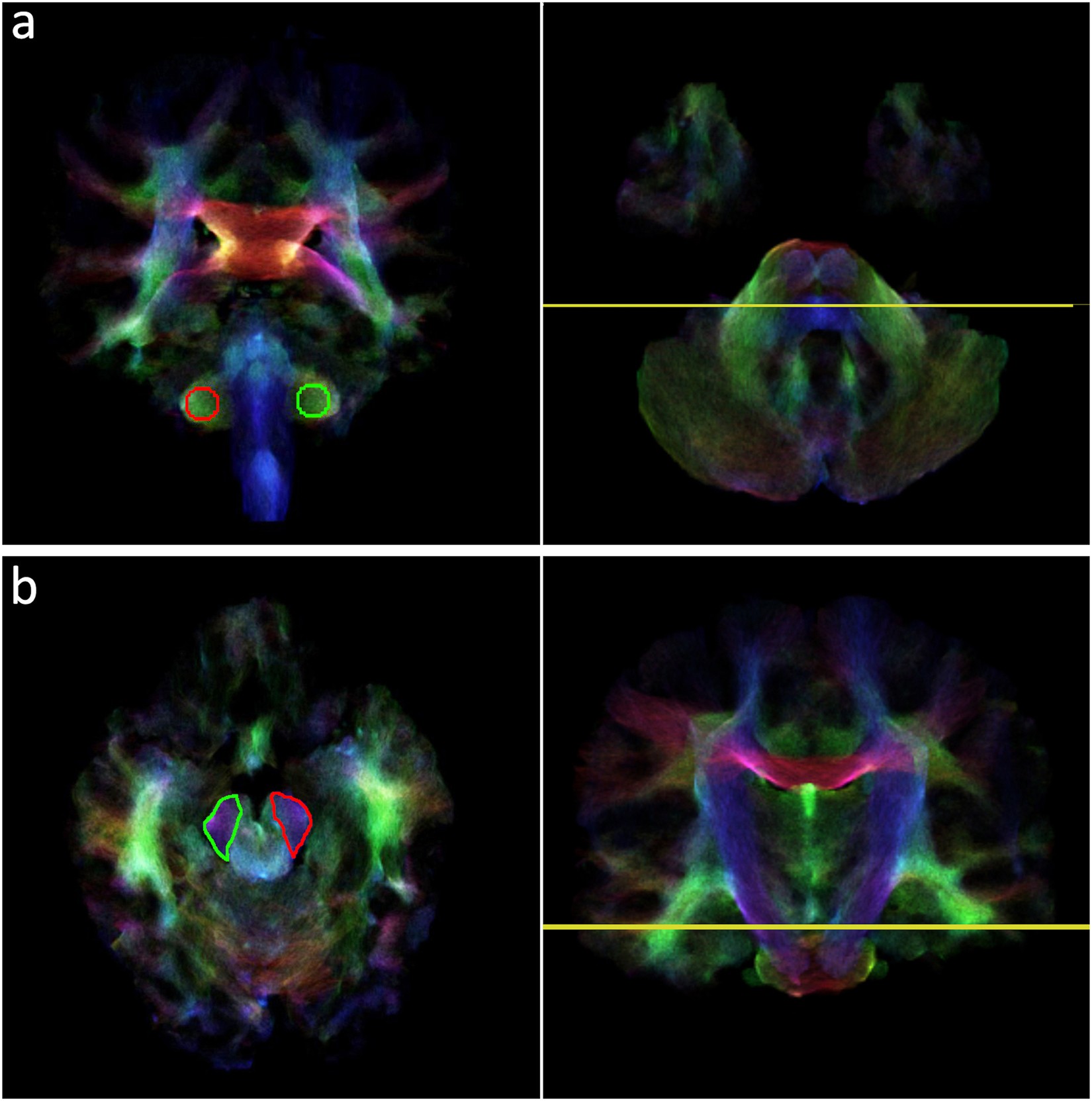

Seed and target ROIs drawn on a colour TDI map. (a) Seed ROIs placed in the coronal plane on both right (red) and left (green) middle cerebellar peduncle at the level identified by the yellow line in the axial plane (right panel). (b) Target ROIs placed in the axial plane on both right (green) and left (red) cerebral peduncle at the level identified by the yellow line in the coronal plane (right panel). The correspondence between each seed ROI and its contralateral target ROI is represented by the same colour.
