From: Contralateral cortico-ponto-cerebellar pathways reconstruction in humans in vivo: implications for reciprocal cerebro-cerebellar structural connectivity in motor and non-motor areas

Figure 6

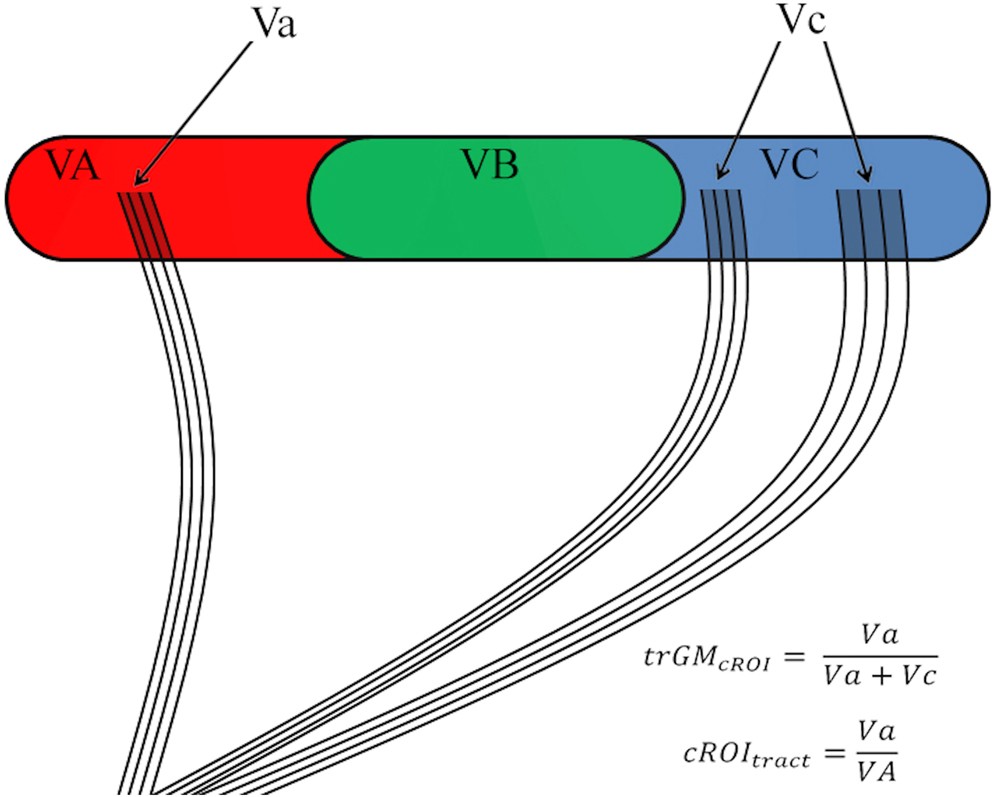

Tractography indices: trGMcROI, cROItract. Each colour (red, green, blue) represents a cortical parcellation. VA, VB, VC represent the volume of the red, green and blue parcellation respectively, while Va, Vc represent the volume occupied by the streamlines (black lines in figure) in the red and blue parcellation respectively. The formulas reported refer to the example of the red parcellation.
