Figure 8
From: Wavelength-tunable passively mode-locked mid-infrared Er3+-doped ZBLAN fiber laser

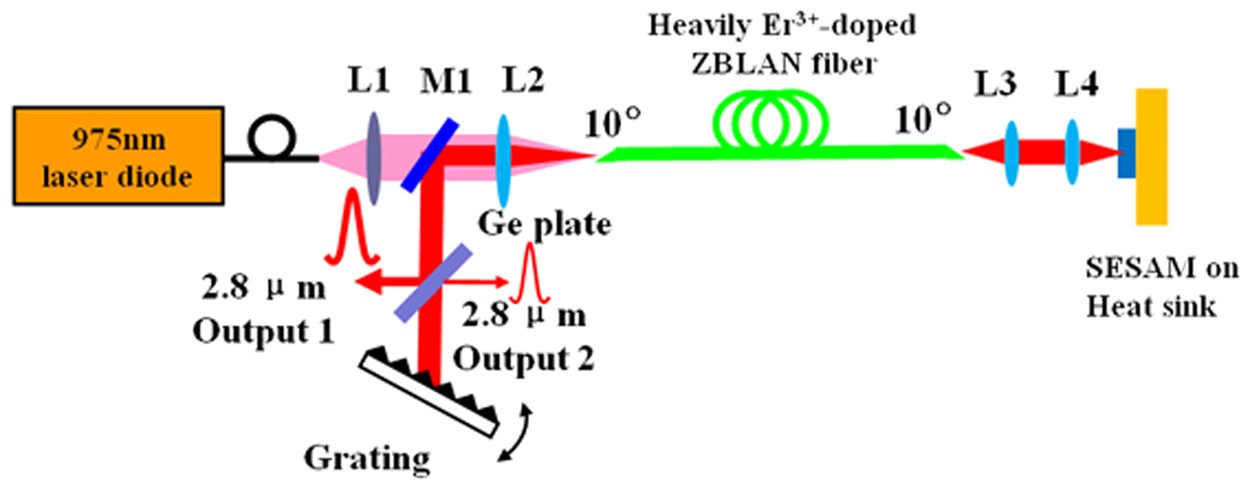

Experimental setup of the wavelength-tunable passively mode-locked Er3+-doped ZBLAN fiber laser. (M1: dichroic mirror, L1: collimator, L2, L3, L4: CaF2 lenses).
