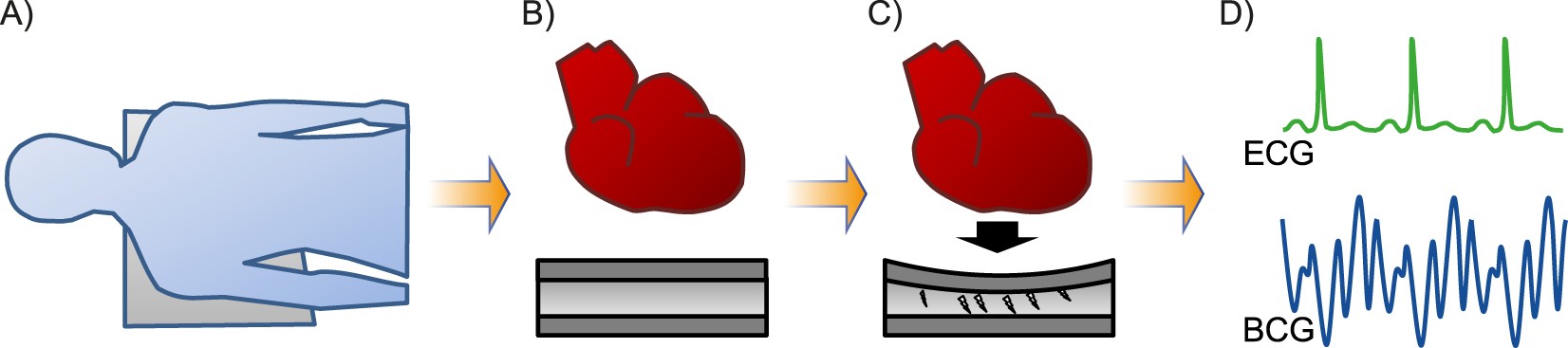

Figure 1

BCG measurement and correlation with a synchronized recorded ECG. (A) BCG foil is positioned under the patient’s chest. (B,C) Mechanical cardiac activity induces a charge shift in the BCG foil. (D) A BCG signal is recorded and compared to a simultaneously recorded ECG.
