Figure 3
From: Live cell X-ray imaging of autophagic vacuoles formation and chromatin dynamics in fission yeast

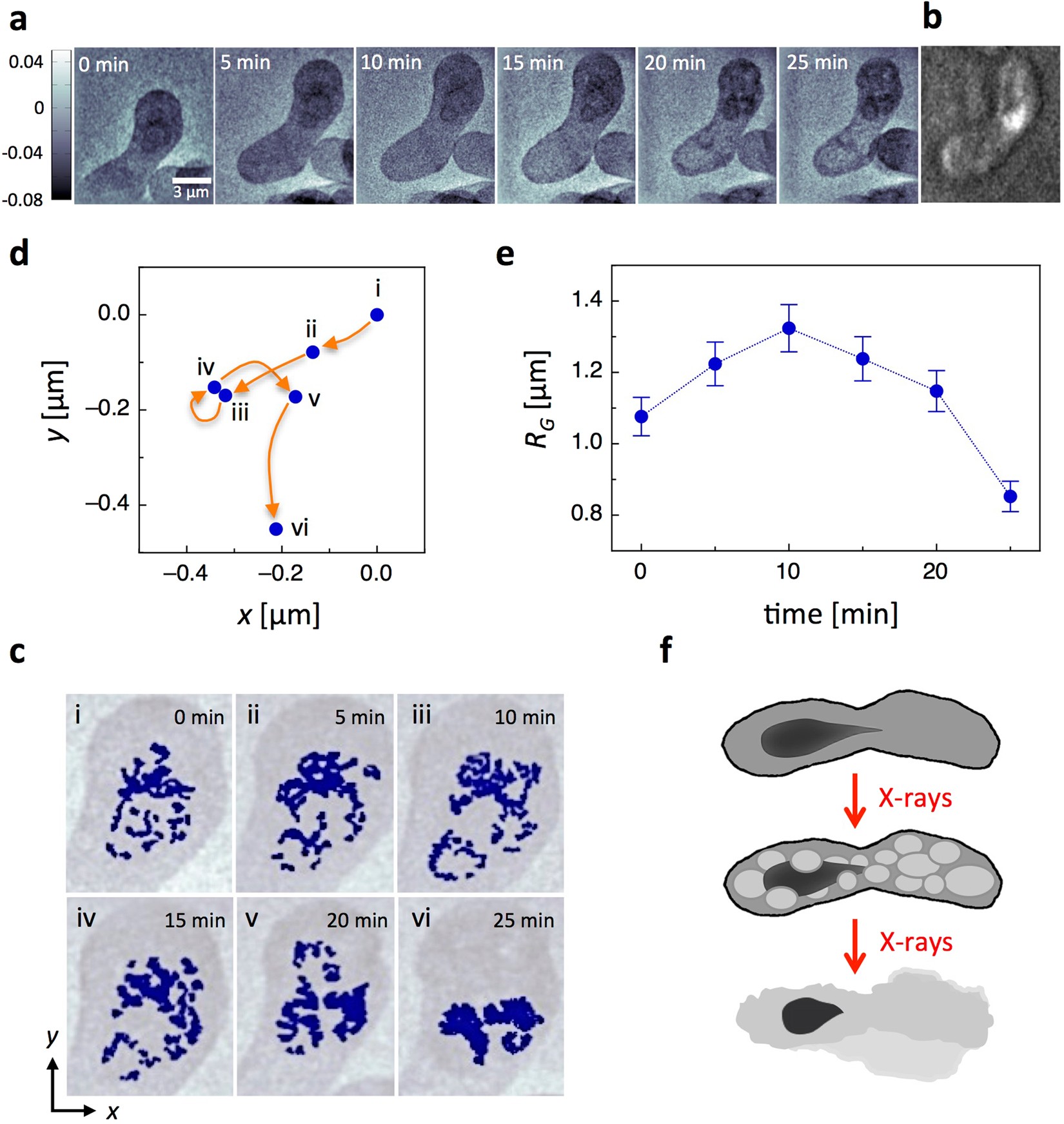

X-ray ptychography images of chromosomes motion in a live fission yeast zygote at the horsetail stage. (a) Temporal image sequence of a live zygote in the horsetail stage obtained by X-ray ptychography. (b) Fluorescence micrograph of the zygote taken before the X-ray ptychography scans. (c) Overlay of image processed contours of the chromosomes (dark blue) on the original ptychography images. (d) Center of mass motion of chromosomes between the sequential ptychographic images. The x and y-position of the center of mass of the first scan at 0 min was set to 0,0. (e) Calculated radius of gyration of the chromosomes versus time. (f) Schematic representation of autophagic vacuoles formation and cell lysis during meiotic chromosome oscillations.
