Figure 6
From: Transition of Femtosecond-Filament-Solid Interactions from Single to Multiple Filament Regime

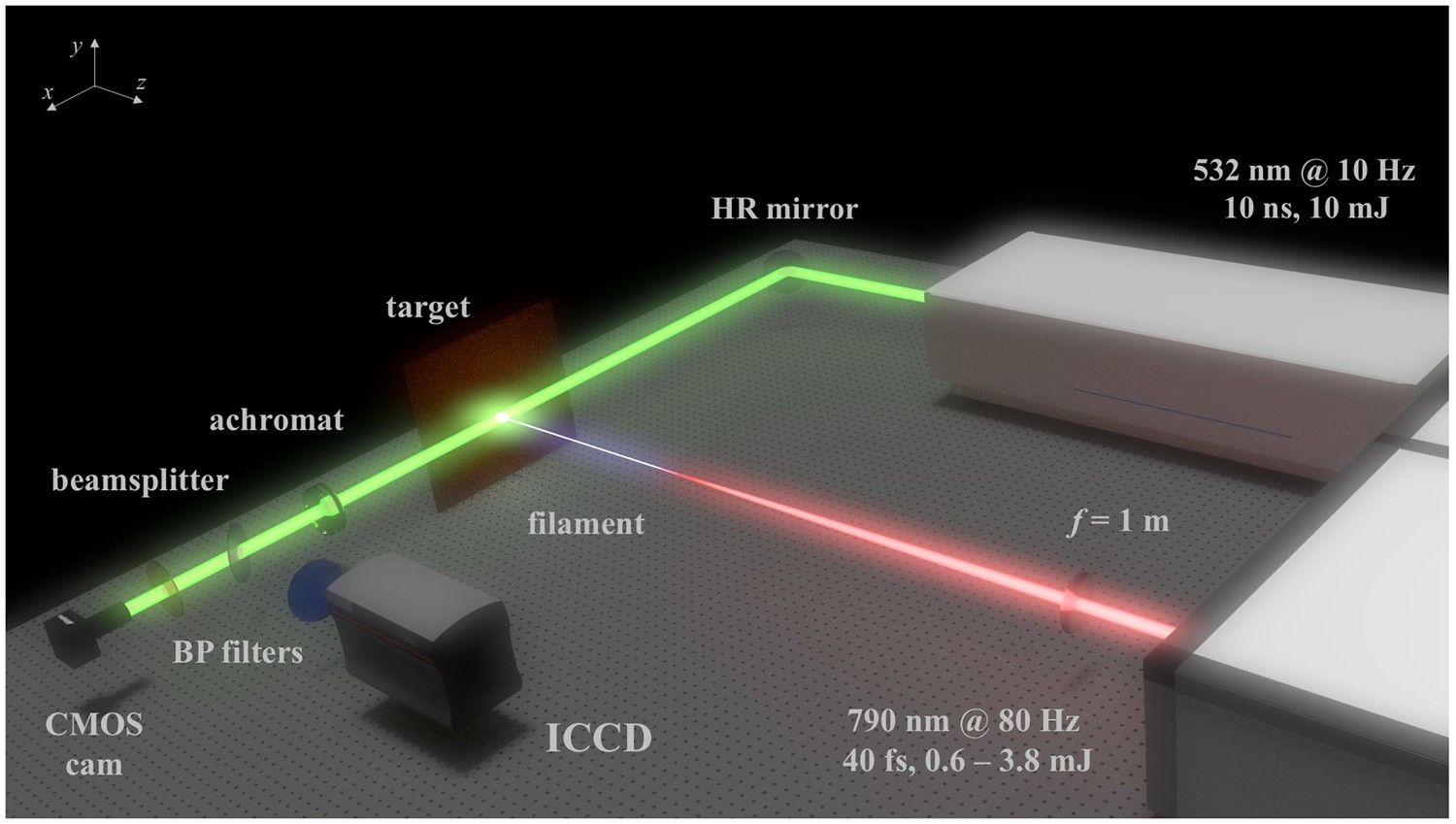

Schematic of the experimental setup. The dual-imaging system employs a probe laser and CMOS detector for shadowgraphy, tracking the shock front produced from filament-target interaction, and ICCD for viewing emission from isolated target species in the corresponding target plasma. Species are isolated by selective bandpass (BP) filters placed in front of the ICCD. High-reflectivity (HR) mirrors allow for alignment of the probe beam used in shadowgraphy.
