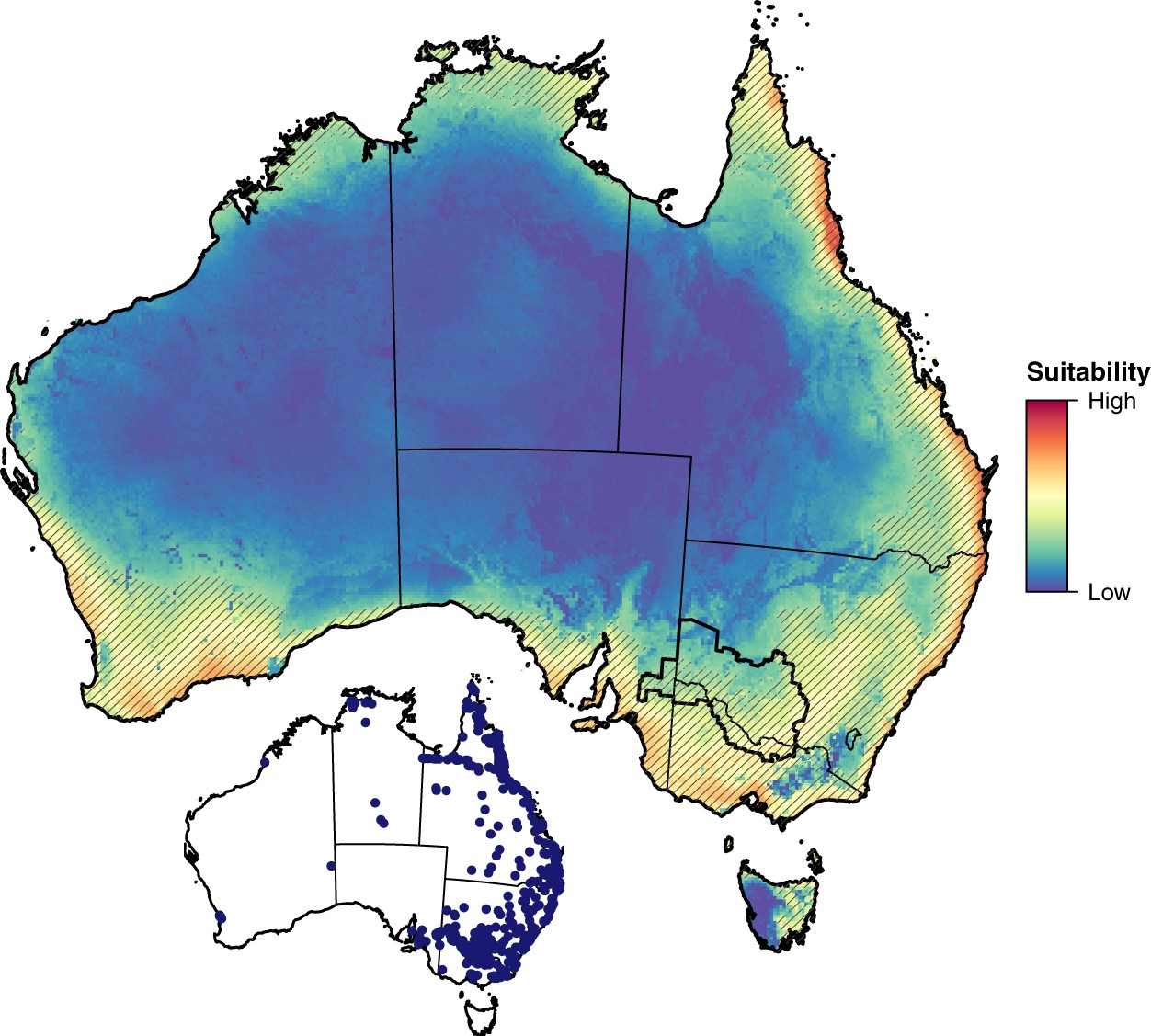

Figure 1
From: Potential impacts of climate change on habitat suitability for the Queensland fruit fly
Current habitat suitability for Qfly modelled using Maxent (the hatched area represents regions with suitability values above the 10th percentile at training presence sites). The location of the former Fruit Fly Exclusion Zone (FFEZ) in south eastern Australia is shown as a polygon. The inset map shows the location of occurrence records of Queensland fruit fly (Qfly) from across Australia, based on specimens from natural history collections, literature and State Government-run trapping programs. Figure was created in R version 3.3.333 (https://www.R-project.org/).
